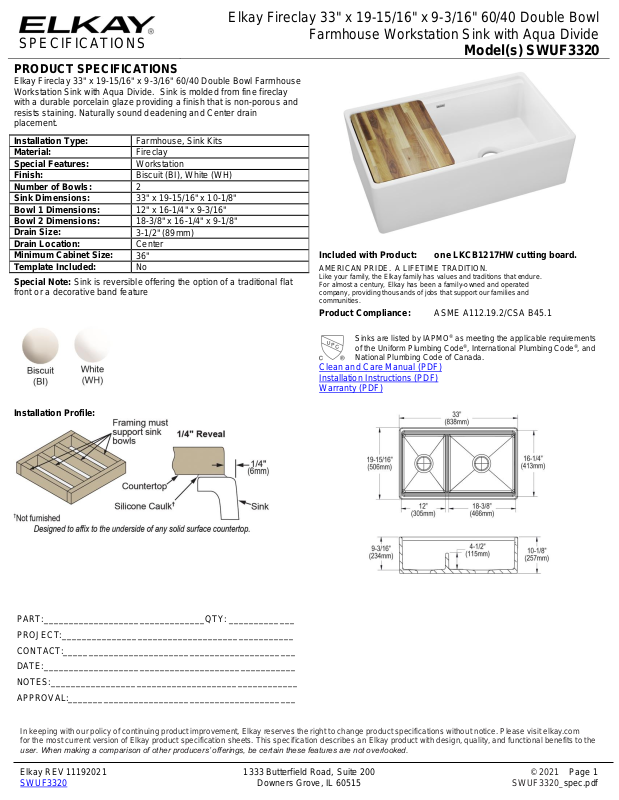

Page 1
SPECIFICATIONS
Elkay Fireclay 33" x 19-15/16" x 9-3/16" 60/40 Double Bowl
Farmhouse Workstation Sink with Aqua Divide
Model(s) SWUF3320
PRODUCT SPECIFICATIONS
Elkay Fireclay 33" x 19-15/16" x 9-3/16" 60/40 Double Bowl Farmhouse
Workstation Sink with Aqua Divide. Sink is molded from fine fireclay
with a durable porcelain glaze providing a finish that is non-porous and
resists staining. Naturally sound deadening and Center drain
placement.
Installation Type:
Farmhouse, Sink Kits
Material:
Fireclay
Special Features:
Workstation
Finish:
Biscuit (BI), White (WH)
Number of Bowls:
2
Sink Dimensions:
33" x 19-15/16" x 10-1/8"
Bowl 1 Dimensions:
12" x 16-1/4" x 9-3/16"
Bowl 2 Dimensions:
18-3/8" x 16-1/4" x 9-1/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
36"
Template Included:
No
Special Note: Sink is reversible offering the option of a traditional flat
front or a decorative band feature
Installation Profile:
Included with Product:
one LKCB1217HW cutting board.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.2/CSA B45.1
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11192021 1333 Butterfield Road, Suite 200 © 2021 Page 1
SWUF3320 Downers Grove, IL 60515 SWUF3320_spec.pdf
Page 2
SPECIFICATIONS
Elkay Fireclay 33" x 19-15/16" x 9-3/16" 60/40 Double Bowl
Farmhouse Workstation Sink with Aqua Divide
Model(s) SWUF3320
Optional Accessories
LKBG1115SS
Elkay Stainless Steel 10-7/16" x 14-9/16" x 1-5/16" Bottom Grid
Spec Sheet (PDF)
LKBG1715SS
Elkay Stainless Steel 16-3/4" x 14-9/16" x 1-5/16" Bottom Grid
Spec Sheet (PDF)
LK99FC
Elkay Deluxe Drain 3-1/2" Type 304 Stainless Steel Body for Fireclay Sinks
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11192021 1333 Butterfield Road, Suite 200 © 2021 Page 2
SWUF3320 Downers Grove, IL 60515 SWUF3320_spec.pdf
