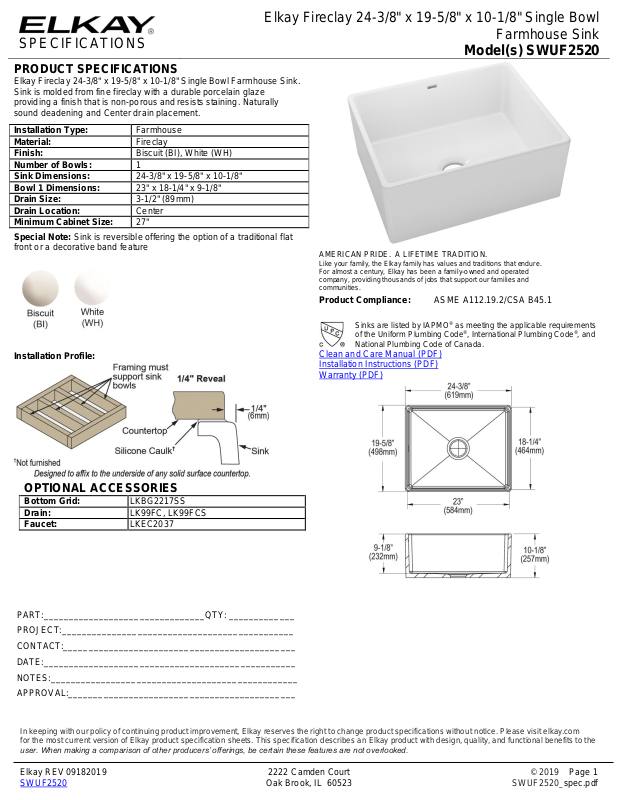

SPECIFICATIONS
Elkay Fireclay 24-3/8" x 19-5/8" x 10-1/8" Single Bowl
Farmhouse Sink
Model(s) SWUF2520
PRODUCT SPECIFICATIONS
Elkay Fireclay 24-3/8" x 19-5/8" x 10-1/8" Single Bowl Farmhouse Sink.
Sink is molded from fine fireclay with a durable porcelain glaze
providing a finish that is non-porous and resists staining. Naturally
sound deadening and Center drain placement.
Installation Type:
Farmhouse
Material:
Fireclay
Finish:
Biscuit (BI), White (WH)
Number of Bowls:
1
Sink Dimensions:
24-3/8" x 19-5/8" x 10-1/8"
Bowl 1 Dimensions:
23" x 18-1/4" x 9-1/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
27"
Special Note: Sink is reversible offering the option of a traditional flat
front or a decorative band feature
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.2/CSA B45.1
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
OPTIONAL ACCESSORIES
Bottom Grid:
LKBG2217SS
Drain:
LK99FC, LK99FCS
Faucet:
LKEC2037
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 09182019 2222 Camden Court © 2019 Page 1
SWUF2520 Oak Brook, IL 60523 SWUF2520_spec.pdf
