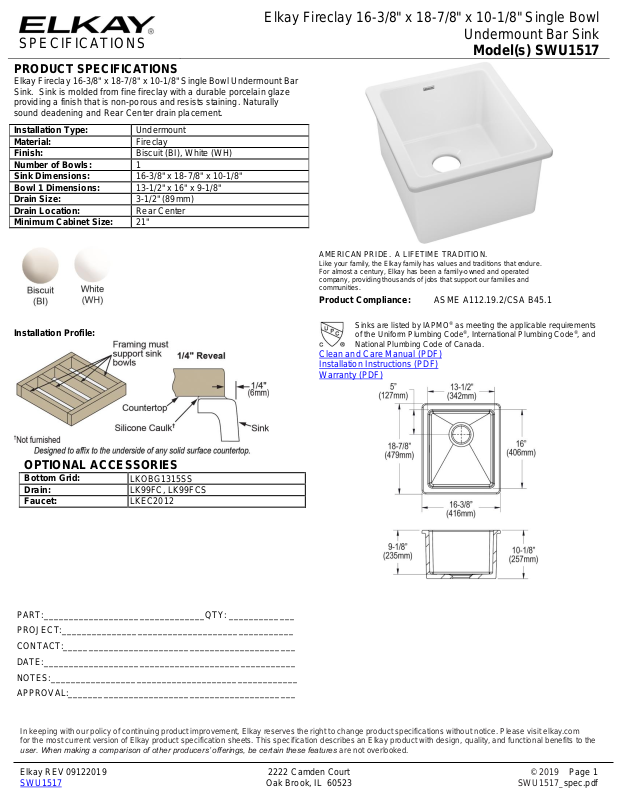

SPECIFICATIONS
Elkay Fireclay 16-3/8" x 18-7/8" x 10-1/8" Single Bowl
Undermount Bar Sink
Model(s) SWU1517
PRODUCT SPECIFICATIONS
Elkay Fireclay 16-3/8" x 18-7/8" x 10-1/8" Single Bowl Undermount Bar
Sink. Sink is molded from fine fireclay with a durable porcelain glaze
providing a finish that is non-porous and resists staining. Naturally
sound deadening and Rear Center drain placement.
Installation Type:
Undermount
Material:
Fireclay
Finish:
Biscuit (BI), White (WH)
Number of Bowls:
1
Sink Dimensions:
16-3/8" x 18-7/8" x 10-1/8"
Bowl 1 Dimensions:
13-1/2" x 16" x 9-1/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
21"
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.2/CSA B45.1
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
OPTIONAL ACCESSORIES
Bottom Grid:
LKOBG1315SS
Drain:
LK99FC, LK99FCS
Faucet:
LKEC2012
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
