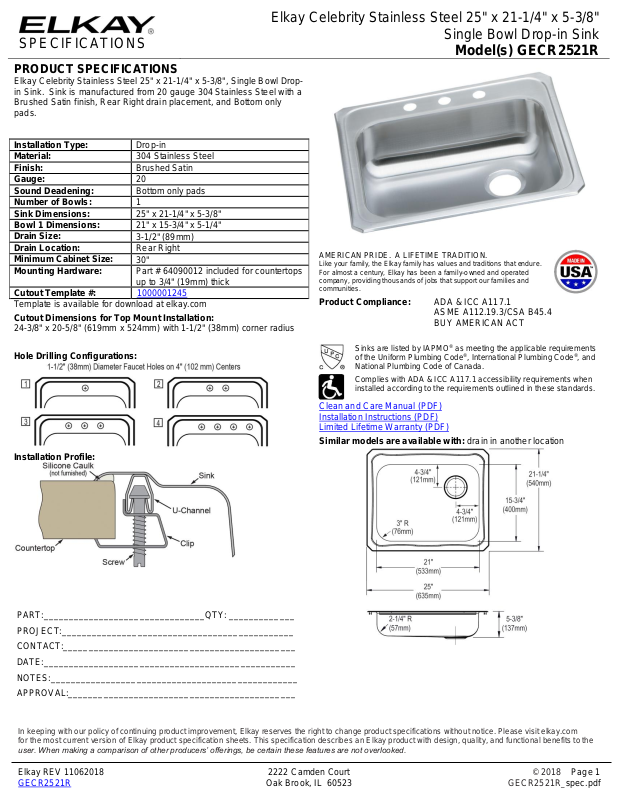

Page 1
SPECIFICATIONS
Elkay Celebrity Stainless Steel 25" x 21-1/4" x 5-3/8"
Single Bowl Drop-in Sink
Model(s) GECR2521R
PRODUCT SPECIFICATIONS
Elkay Celebrity Stainless Steel 25" x 21-1/4" x 5-3/8", Single Bowl Dropin Sink. Sink is manufactured from 20 gauge 304 Stainless Steel with a
Brushed Satin finish, Rear Right drain placement, and Bottom only
pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Finish:
Brushed Satin
Gauge:
20
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
25" x 21-1/4" x 5-3/8"
Bowl 1 Dimensions:
21" x 15-3/4" x 5-1/4"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Right
Minimum Cabinet Size:
30"
Mounting Hardware:
Part # 64090012 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001245
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
24-3/8" x 20-5/8" (619mm x 524mm) with 1-1/2" (38mm) corner radius
Hole Drilling Configurations:
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: drain in another location
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 1
GECR2521R Oak Brook, IL 60523 GECR2521R_spec.pdf
Page 2
SPECIFICATIONS
Elkay Celebrity Stainless Steel 25" x 21-1/4" x 5-3/8"
Single Bowl Drop-in Sink
Model(s) GECR2521R
OPTIONAL ACCESSORIES
Cutting Board:
CB1516
Drain:
LK99
Faucet:
LKGT1041, LKGT2041
Hardware:
LK364, LK463
Soap Dispenser:
LKGT1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 2
GECR2521R Oak Brook, IL 60523 GECR2521R_spec.pdf
