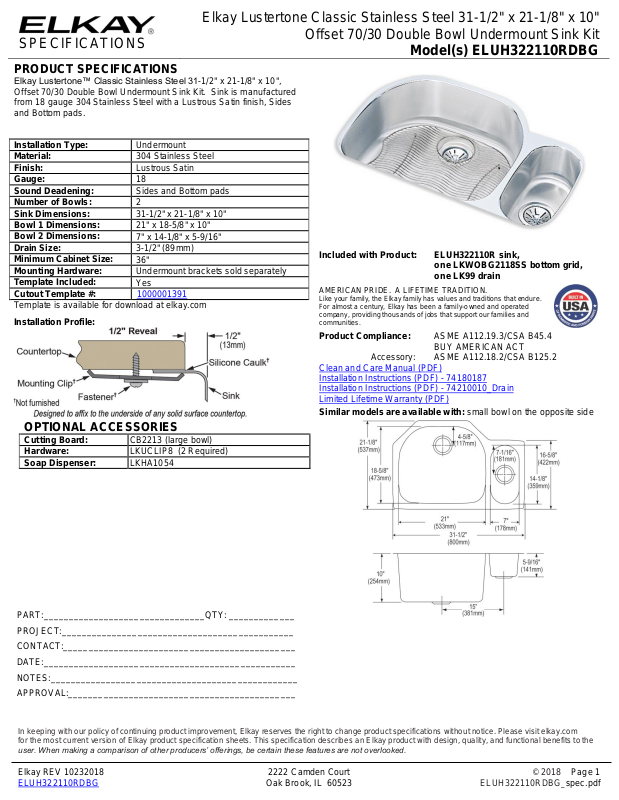

SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 31-1/2" x 21-1/8" x 10"
Offset 70/30 Double Bowl Undermount Sink Kit
Model(s) ELUH322110RDBG
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 31-1/2" x 21-1/8" x 10",
Offset 70/30 Double Bowl Undermount Sink Kit. Sink is manufactured
from 18 gauge 304 Stainless Steel with a Lustrous Satin finish, Sides
and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
31-1/2" x 21-1/8" x 10"
Bowl 1 Dimensions:
21" x 18-5/8" x 10"
Bowl 2 Dimensions:
7" x 14-1/8" x 5-9/16"
Drain Size:
3-1/2" (89mm)
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001391
Template is available for download at elkay.com
Installation Profile:
Included with Product:
ELUH322110R sink,
one LKWOBG2118SS bottom grid,
one LK99 drain
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 74180187
Installation Instructions (PDF) - 74210010_Drain
Limited Lifetime Warranty (PDF)
Similar models are available with: small bowl on the opposite side
OPTIONAL ACCESSORIES
Cutting Board:
CB2213 (large bowl)
Hardware:
LKUCLIP8 (2 Required)
Soap Dispenser:
LKHA1054
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10232018 2222 Camden Court © 2018 Page 1
ELUH322110RDBG Oak Brook, IL 60523 ELUH322110RDBG_spec.pdf
