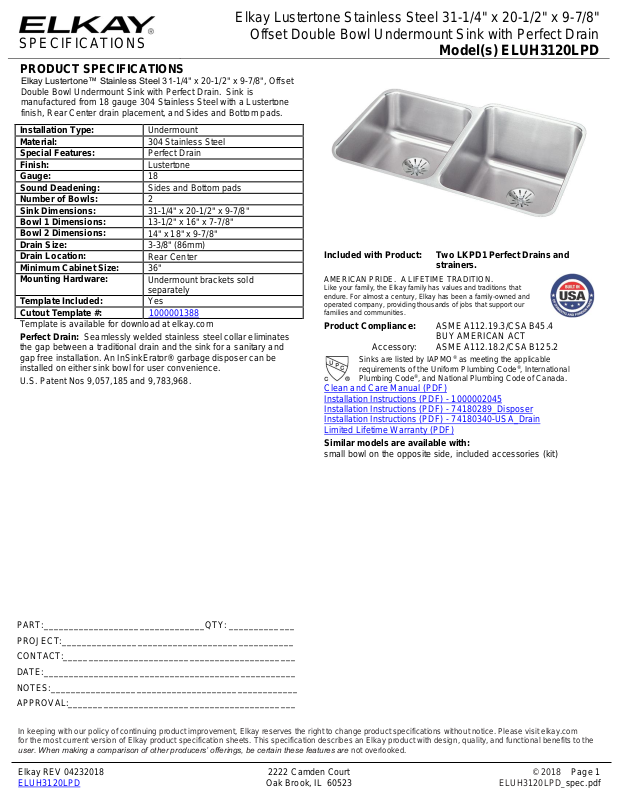

SPECIFICATIONS
Elkay Lustertone Stainless Steel 31-1/4" x 20-1/2" x 9-7/8"
Offset Double Bowl Undermount Sink with Perfect Drain
Model(s) ELUH3120LPD
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Stainless Steel 31-1/4" x 20-1/2" x 9-7/8", Offset
Double Bowl Undermount Sink with Perfect Drain. Sink is
manufactured from 18 gauge 304 Stainless Steel with a Lustertone
finish, Rear Center drain placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Perfect Drain
Finish:
Lustertone
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
31-1/4" x 20-1/2" x 9-7/8"
Bowl 1 Dimensions:
13-1/2" x 16" x 7-7/8"
Bowl 2 Dimensions:
14" x 18" x 9-7/8"
Drain Size:
3-3/8" (86mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold
separately
Template Included:
Yes
Cutout Template #:
1000001388
Template is available for download at elkay.com
Perfect Drain: Seamlessly welded stainless steel collar eliminates
the gap between a traditional drain and the sink for a sanitary and
gap free installation. An InSinkErator® garbage disposer can be
installed on either sink bowl for user convenience.
U.S. Patent Nos 9,057,185 and 9,783,968.
Included with Product:
Two LKPD1 Perfect Drains and
strainers.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000002045
Installation Instructions (PDF) - 74180289_Disposer
Installation Instructions (PDF) - 74180340-USA_Drain
Limited Lifetime Warranty (PDF)
Similar models are available with:
small bowl on the opposite side, included accessories (kit)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04232018 2222 Camden Court © 2018 Page 1
ELUH3120LPD Oak Brook, IL 60523 ELUH3120LPD_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Stainless Steel 31-1/4" x 20-1/2" x 9-7/8"
Offset Double Bowl Undermount Sink with Perfect Drain
Model(s) ELUH3120LPD
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG1418SS (large bowl),
LKWOBG1316SS (small bowl)
Drain:
LKPDVR18B, LKDS99, LKDS35
Faucet:
LKGT1041, LKGT2041
Hardware:
LKUCLIP8 (2 Required)
Rinsing Basket:
LKWRB1418SS (large bowl),
LKWERBSS, LKWRB1316SS (small
bowl)
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
Installation Profile:
