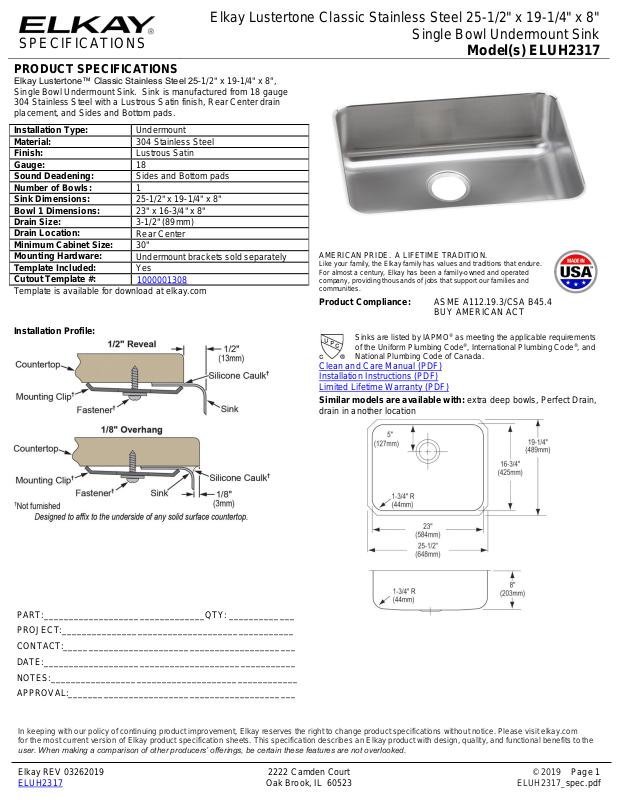

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 25-1/2" x 19-1/4" x 8"
Single Bowl Undermount Sink
Model(s) ELUH2317
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 25-1/2" x 19-1/4" x 8",
Single Bowl Undermount Sink. Sink is manufactured from 18 gauge
304 Stainless Steel with a Lustrous Satin finish, Rear Center drain
placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
1
Sink Dimensions:
25-1/2" x 19-1/4" x 8"
Bowl 1 Dimensions:
23" x 16-3/4" x 8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
30"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001308
Template is available for download at elkay.com
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: extra deep bowls, Perfect Drain,
drain in another location
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 03262019 2222 Camden Court © 2019 Page 1
ELUH2317 Oak Brook, IL 60523 ELUH2317_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 25-1/2" x 19-1/4" x 8"
Single Bowl Undermount Sink
Model(s) ELUH2317
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG2317SS
Cutting Board:
LKCB2317HW*
Drain:
LK99
Hardware:
LKUCLIP8
* 1/2" sink reveal required for proper fit.
