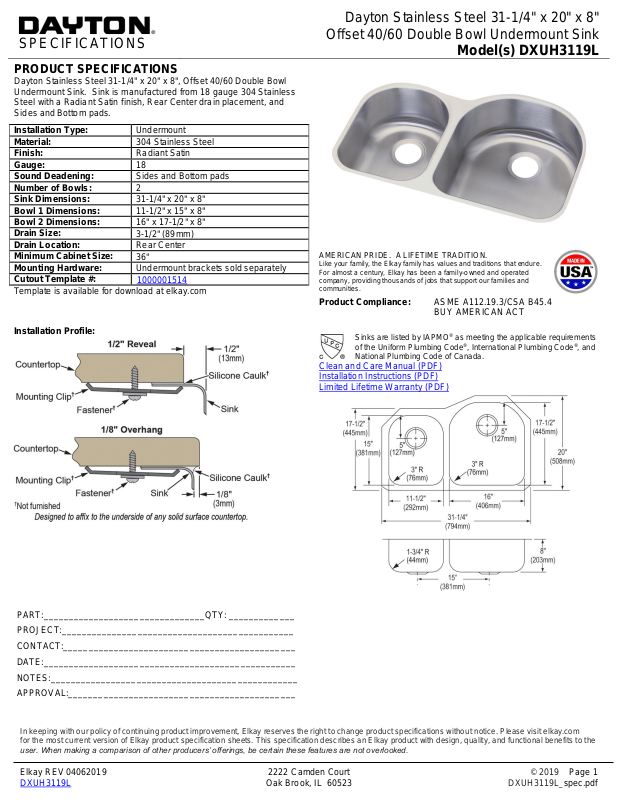

Page 1
SPECIFICATIONS
Dayton Stainless Steel 31-1/4" x 20" x 8"
Offset 40/60 Double Bowl Undermount Sink
Model(s) DXUH3119L
PRODUCT SPECIFICATIONS
Dayton Stainless Steel 31-1/4" x 20" x 8", Offset 40/60 Double Bowl
Undermount Sink. Sink is manufactured from 18 gauge 304 Stainless
Steel with a Radiant Satin finish, Rear Center drain placement, and
Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Radiant Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
31-1/4" x 20" x 8"
Bowl 1 Dimensions:
11-1/2" x 15" x 8"
Bowl 2 Dimensions:
16" x 17-1/2" x 8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Cutout Template #:
1000001514
Template is available for download at elkay.com
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04062019 2222 Camden Court © 2019 Page 1
DXUH3119L Oak Brook, IL 60523 DXUH3119L_spec.pdf
Page 2
SPECIFICATIONS
Dayton Stainless Steel 31-1/4" x 20" x 8"
Offset 40/60 Double Bowl Undermount Sink
Model(s) DXUH3119L
OPTIONAL ACCESSORIES
Bottom Grid:
GOBG1617SS (large bowl),
GOBG1115SS (small bowl)
Cutting Board:
CB1713*
Drain:
D1125
Hardware:
LKUCLIP8 (2 Required)
Sinkmate:
LKSMHSL
* 1/2" sink reveal required for proper fit.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04062019 2222 Camden Court © 2019 Page 2
DXUH3119L Oak Brook, IL 60523 DXUH3119L_spec.pdf
