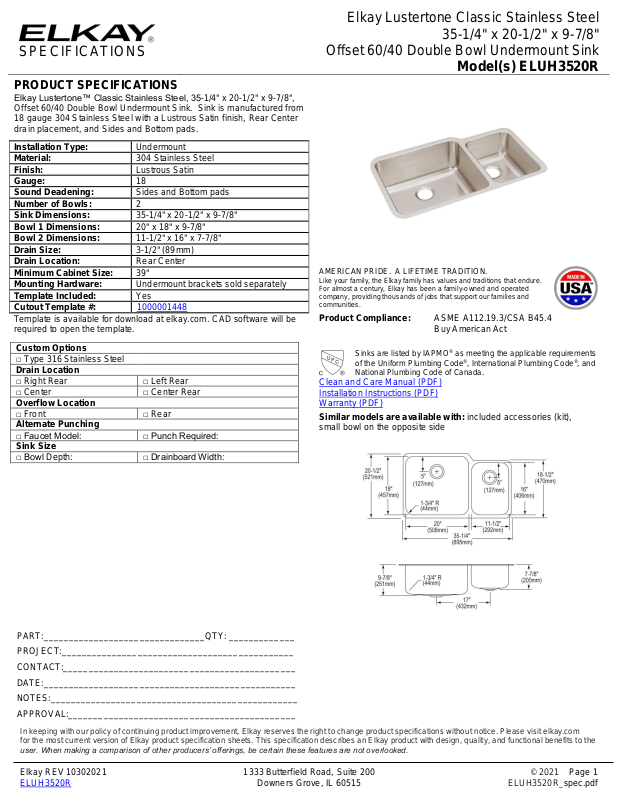

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
35-1/4" x 20-1/2" x 9-7/8"
Offset 60/40 Double Bowl Undermount Sink
Model(s) ELUH3520R
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel, 35-1/4" x 20-1/2" x 9-7/8",
Offset 60/40 Double Bowl Undermount Sink. Sink is manufactured from
18 gauge 304 Stainless Steel with a Lustrous Satin finish, Rear Center
drain placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
35-1/4" x 20-1/2" x 9-7/8"
Bowl 1 Dimensions:
20" x 18" x 9-7/8"
Bowl 2 Dimensions:
11-1/2" x 16" x 7-7/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
39"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001448
Template is available for download at elkay.com. CAD software will be
required to open the template.
Custom Options
□ Type 316 Stainless Steel
Drain Location
□ Right Rear
□ Left Rear
□ Center
□ Center Rear
Overflow Location
□ Front
□ Rear
Alternate Punching
□ Faucet Model:
□ Punch Required:
Sink Size
□ Bowl Depth:
□ Drainboard Width:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Buy American Act
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
Similar models are available with: included accessories (kit),
small bowl on the opposite side
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10302021 1333 Butterfield Road, Suite 200 © 2021 Page 1
ELUH3520R Downers Grove, IL 60515 ELUH3520R_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
35-1/4" x 20-1/2" x 9-7/8"
Offset 60/40 Double Bowl Undermount Sink
Model(s) ELUH3520R
Installation Profile:
Optional Accessories
LKWOBG1116SS
Elkay Stainless Steel 10-1/2" x 15" x 1" Bottom Grid
Spec Sheet (PDF)
LKWOBG2018SS
Elkay Stainless Steel 19" x 17" x 1" Bottom Grid
Spec Sheet (PDF)
CBS1418
Elkay Hardwood 15" x 19" x 3/4" Cutting Board
Spec Sheet (PDF)
LK99
Elkay Deluxe 3-1/2" Drain Type 304 Stainless Steel Body Strainer Basket Rubber
Seal and Tailpiece
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10302021 1333 Butterfield Road, Suite 200 © 2021 Page 2
ELUH3520R Downers Grove, IL 60515 ELUH3520R_spec.pdf
