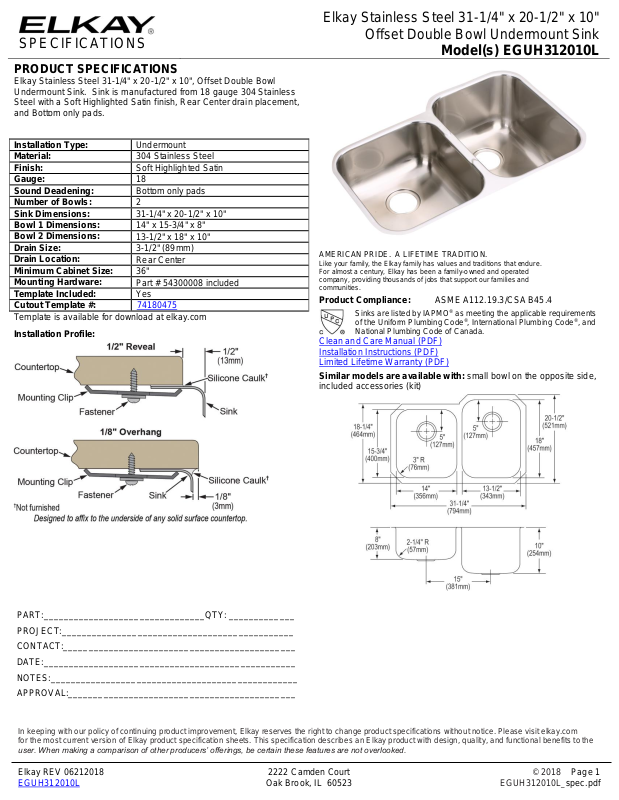

Page 1
SPECIFICATIONS
Elkay Stainless Steel 31-1/4" x 20-1/2" x 10"
Offset Double Bowl Undermount Sink
Model(s) EGUH312010L
PRODUCT SPECIFICATIONS
Elkay Stainless Steel 31-1/4" x 20-1/2" x 10", Offset Double Bowl
Undermount Sink. Sink is manufactured from 18 gauge 304 Stainless
Steel with a Soft Highlighted Satin finish, Rear Center drain placement,
and Bottom only pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Soft Highlighted Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
2
Sink Dimensions:
31-1/4" x 20-1/2" x 10"
Bowl 1 Dimensions:
14" x 15-3/4" x 8"
Bowl 2 Dimensions:
13-1/2" x 18" x 10"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300008 included
Template Included:
Yes
Cutout Template #:
74180475
Template is available for download at elkay.com
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: small bowl on the opposite side,
included accessories (kit)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 06212018 2222 Camden Court © 2018 Page 1
EGUH312010L Oak Brook, IL 60523 EGUH312010L_spec.pdf
Page 2
SPECIFICATIONS
Elkay Stainless Steel 31-1/4" x 20-1/2" x 10"
Offset Double Bowl Undermount Sink
Model(s) EGUH312010L
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG1318SS (large bowl),
LKWOBG1415SS (small bowl)
Cutting Board:
CB1516
Drain:
LK99
Faucet:
LKGT1041, LKGT2041
Rinsing Basket:
LKWERBSS, LKWRB1316SS
Soap Dispenser:
LKGT1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 06212018 2222 Camden Court © 2018 Page 2
EGUH312010L Oak Brook, IL 60523 EGUH312010L_spec.pdf
