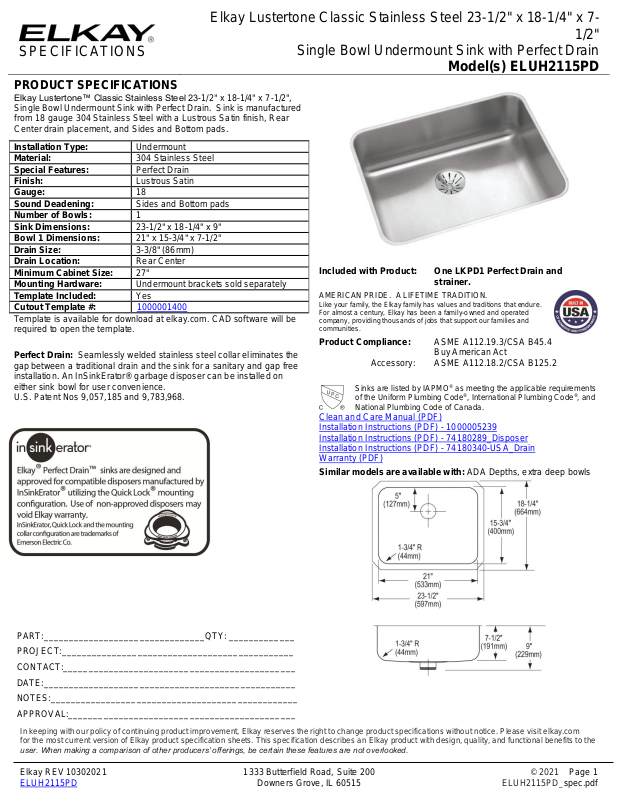

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 23-1/2" x 18-1/4" x 7-
1/2"
Single Bowl Undermount Sink with Perfect Drain
Model(s) ELUH2115PD
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 23-1/2" x 18-1/4" x 7-1/2",
Single Bowl Undermount Sink with Perfect Drain. Sink is manufactured
from 18 gauge 304 Stainless Steel with a Lustrous Satin finish, Rear
Center drain placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Perfect Drain
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
1
Sink Dimensions:
23-1/2" x 18-1/4" x 9"
Bowl 1 Dimensions:
21" x 15-3/4" x 7-1/2"
Drain Size:
3-3/8" (86mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001400
Template is available for download at elkay.com. CAD software will be
required to open the template.
Perfect Drain: Seamlessly welded stainless steel collar eliminates the
gap between a traditional drain and the sink for a sanitary and gap free
installation. An InSinkErator® garbage disposer can be installed on
either sink bowl for user convenience.
U.S. Patent Nos 9,057,185 and 9,783,968.
Included with Product:
One LKPD1 Perfect Drain and
strainer.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Buy American Act
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000005239
Installation Instructions (PDF) - 74180289_Disposer
Installation Instructions (PDF) - 74180340-USA_Drain
Warranty (PDF)
Similar models are available with: ADA Depths, extra deep bowls
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10302021 1333 Butterfield Road, Suite 200 © 2021 Page 1
ELUH2115PD Downers Grove, IL 60515 ELUH2115PD_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 23-1/2" x 18-1/4" x 7-
1/2"
Single Bowl Undermount Sink with Perfect Drain
Model(s) ELUH2115PD
Installation Profile:
Optional Accessories
LKWOBG2115SS
Elkay Stainless Steel 20" x 14-3/4" x 1" Bottom Grid
Spec Sheet (PDF)
CB1516
Elkay Hardwood 15" x 16-3/4" x 3/4" Cutting Board
Spec Sheet (PDF)
LKDS35
Elkay 3-1/2" Disposal Stopper / Strainer for use with Perfect Drain or
InSinkErator® Disposal Satin Finish
Spec Sheet (PDF)
LKDS99
Elkay 3-1/2" Disposal Stopper / Strainer for use with Perfect Drain or
InSinkErator® Disposal Chrome Polished Stainless Steel
Spec Sheet (PDF)
LKPDVR18B
Elkay Perfect Drain Chrome Plated Brass Body Vandal-resistant Strainer and
LKADOS Tailpiece
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10302021 1333 Butterfield Road, Suite 200 © 2021 Page 2
ELUH2115PD Downers Grove, IL 60515 ELUH2115PD_spec.pdf
