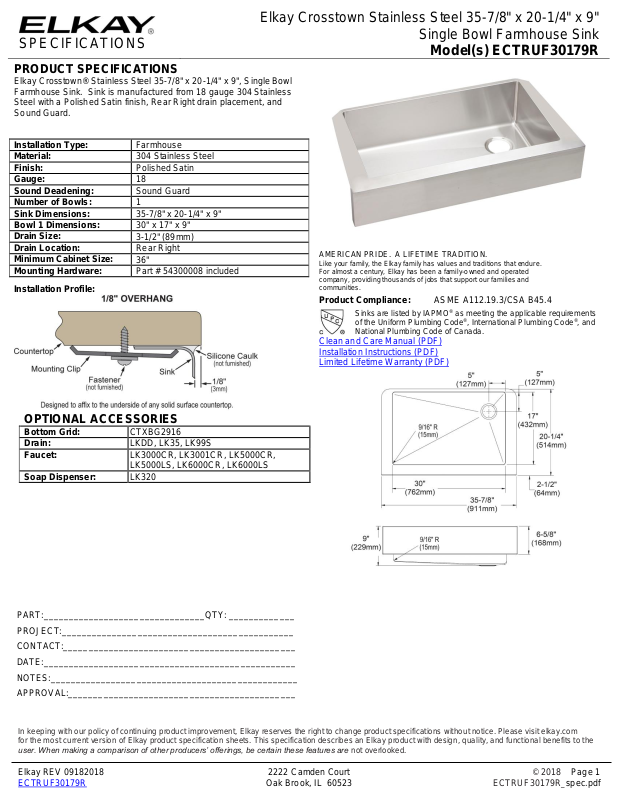

SPECIFICATIONS
Elkay Crosstown Stainless Steel 35-7/8" x 20-1/4" x 9"
Single Bowl Farmhouse Sink
Model(s) ECTRUF30179R
PRODUCT SPECIFICATIONS
Elkay Crosstown® Stainless Steel 35-7/8" x 20-1/4" x 9", Single Bowl
Farmhouse Sink. Sink is manufactured from 18 gauge 304 Stainless
Steel with a Polished Satin finish, Rear Right drain placement, and
Sound Guard.
Installation Type:
Farmhouse
Material:
304 Stainless Steel
Finish:
Polished Satin
Gauge:
18
Sound Deadening:
Sound Guard
Number of Bowls:
1
Sink Dimensions:
35-7/8" x 20-1/4" x 9"
Bowl 1 Dimensions:
30" x 17" x 9"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Right
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300008 included
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
OPTIONAL ACCESSORIES
Bottom Grid:
CTXBG2916
Drain:
LKDD, LK35, LK99S
Faucet:
LK3000CR, LK3001CR, LK5000CR,
LK5000LS, LK6000CR, LK6000LS
Soap Dispenser:
LK320
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 09182018 2222 Camden Court © 2018 Page 1
ECTRUF30179R Oak Brook, IL 60523 ECTRUF30179R_spec.pdf
