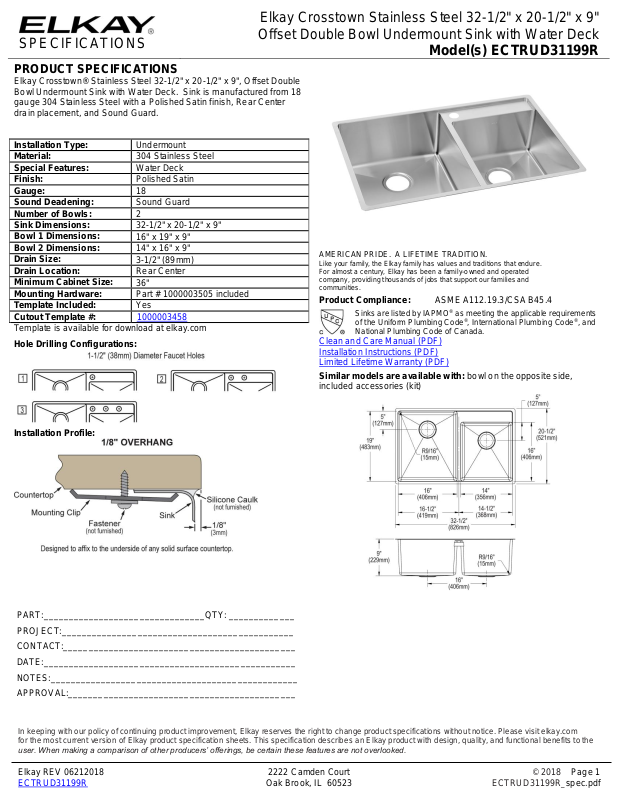

Page 1
SPECIFICATIONS
Elkay Crosstown Stainless Steel 32-1/2" x 20-1/2" x 9"
Offset Double Bowl Undermount Sink with Water Deck
Model(s) ECTRUD31199R
PRODUCT SPECIFICATIONS
Elkay Crosstown® Stainless Steel 32-1/2" x 20-1/2" x 9", Offset Double
Bowl Undermount Sink with Water Deck. Sink is manufactured from 18
gauge 304 Stainless Steel with a Polished Satin finish, Rear Center
drain placement, and Sound Guard.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Water Deck
Finish:
Polished Satin
Gauge:
18
Sound Deadening:
Sound Guard
Number of Bowls:
2
Sink Dimensions:
32-1/2" x 20-1/2" x 9"
Bowl 1 Dimensions:
16" x 19" x 9"
Bowl 2 Dimensions:
14" x 16" x 9"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 1000003505 included
Template Included:
Yes
Cutout Template #:
1000003458
Template is available for download at elkay.com
Hole Drilling Configurations:
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: bowl on the opposite side,
included accessories (kit)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 06212018 2222 Camden Court © 2018 Page 1
ECTRUD31199R Oak Brook, IL 60523 ECTRUD31199R_spec.pdf
Page 2
SPECIFICATIONS
Elkay Crosstown Stainless Steel 32-1/2" x 20-1/2" x 9"
Offset Double Bowl Undermount Sink with Water Deck
Model(s) ECTRUD31199R
OPTIONAL ACCESSORIES
Drain:
LKDD, LK35
Faucet:
LK3000CR, LK3001CR, LK5000CR,
LK5000LS
Soap Dispenser:
LK320
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 06212018 2222 Camden Court © 2018 Page 2
ECTRUD31199R Oak Brook, IL 60523 ECTRUD31199R_spec.pdf
