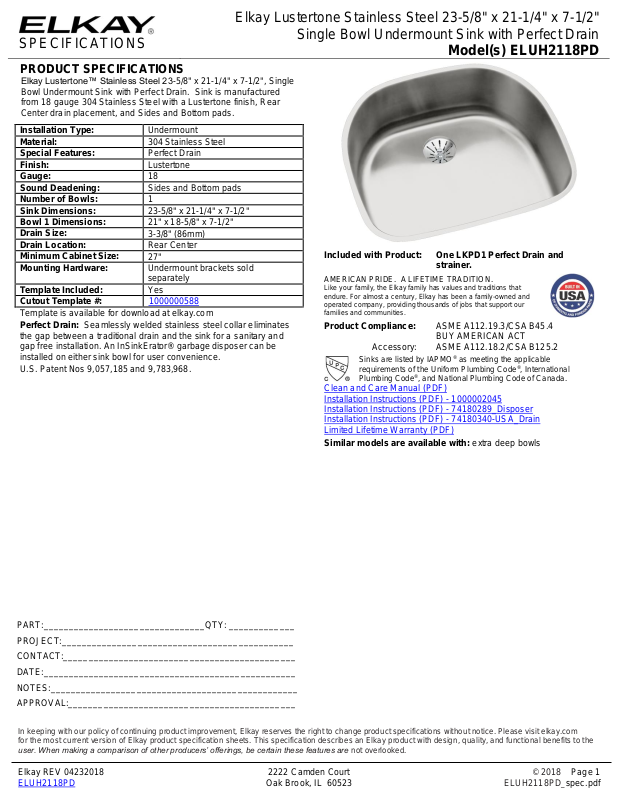

SPECIFICATIONS
Elkay Lustertone Stainless Steel 23-5/8" x 21-1/4" x 7-1/2"
Single Bowl Undermount Sink with Perfect Drain
Model(s) ELUH2118PD
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Stainless Steel 23-5/8" x 21-1/4" x 7-1/2", Single
Bowl Undermount Sink with Perfect Drain. Sink is manufactured
from 18 gauge 304 Stainless Steel with a Lustertone finish, Rear
Center drain placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Perfect Drain
Finish:
Lustertone
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
1
Sink Dimensions:
23-5/8" x 21-1/4" x 7-1/2"
Bowl 1 Dimensions:
21" x 18-5/8" x 7-1/2"
Drain Size:
3-3/8" (86mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Undermount brackets sold
separately
Template Included:
Yes
Cutout Template #:
1000000588
Template is available for download at elkay.com
Perfect Drain: Seamlessly welded stainless steel collar eliminates
the gap between a traditional drain and the sink for a sanitary and
gap free installation. An InSinkErator® garbage disposer can be
installed on either sink bowl for user convenience.
U.S. Patent Nos 9,057,185 and 9,783,968.
Included with Product:
One LKPD1 Perfect Drain and
strainer.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000002045
Installation Instructions (PDF) - 74180289_Disposer
Installation Instructions (PDF) - 74180340-USA_Drain
Limited Lifetime Warranty (PDF)
Similar models are available with: extra deep bowls
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04232018 2222 Camden Court © 2018 Page 1
ELUH2118PD Oak Brook, IL 60523 ELUH2118PD_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Stainless Steel 23-5/8" x 21-1/4" x 7-1/2"
Single Bowl Undermount Sink with Perfect Drain
Model(s) ELUH2118PD
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG2118SS
Cutting Board:
CB2213
Drain:
LKPDVR18B, LKDS99, LKDS35
Faucet:
LKHA1031, LKHA2031, LKHA3041
Hardware:
LKUCLIP8
Rinsing Basket:
LKWERBSS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKHA1054
Installation Profile:
