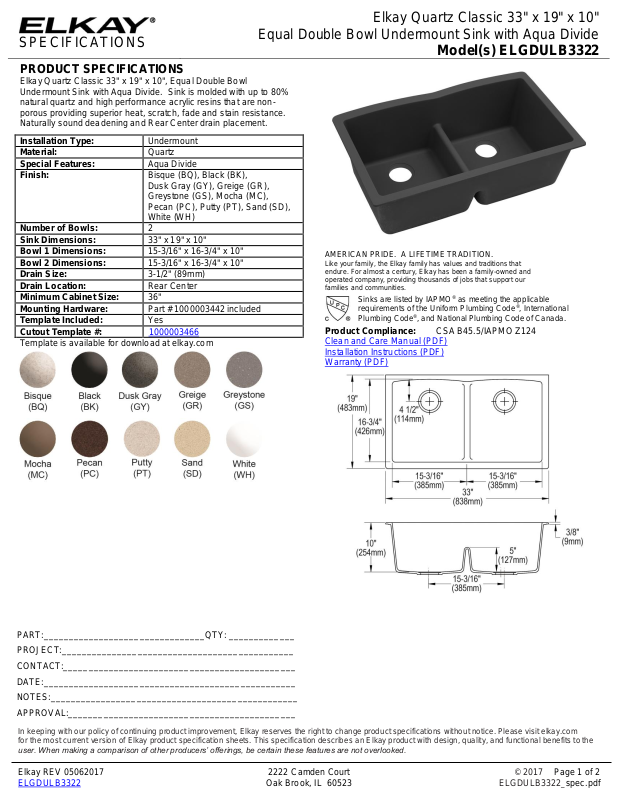

Page 1
SPECIFICATIONS
Elkay Quartz Classic 33" x 19" x 10"
Equal Double Bowl Undermount Sink with Aqua Divide
Model(s) ELGDULB3322
PRODUCT SPECIFICATIONS
Elkay Quartz Classic 33" x 19" x 10", Equal Double Bowl
Undermount Sink with Aqua Divide. Sink is molded with up to 80%
natural quartz and high performance acrylic resins that are nonporous providing superior heat, scratch, fade and stain resistance.
Naturally sound deadening and Rear Center drain placement.
Installation Type:
Undermount
Material:
Quartz
Special Features:
Aqua Divide
Finish:
Bisque (BQ), Black (BK),
Dusk Gray (GY), Greige (GR),
Greystone (GS), Mocha (MC),
Pecan (PC), Putty (PT), Sand (SD),
White (WH)
Number of Bowls:
2
Sink Dimensions:
33" x 19" x 10"
Bowl 1 Dimensions:
15-3/16" x 16-3/4" x 10"
Bowl 2 Dimensions:
15-3/16" x 16-3/4" x 10"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 1000003442 included
Template Included:
Yes
Cutout Template #:
1000003466
Template is available for download at elkay.com
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Product Compliance:
CSA B45.5/IAPMO Z124
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05062017 2222 Camden Court © 2017 Page 1 of 2
ELGDULB3322 Oak Brook, IL 60523 ELGDULB3322_spec.pdf
Page 2
SPECIFICATIONS
Elkay Quartz Classic 33" x 19" x 10"
Equal Double Bowl Undermount Sink with Aqua Divide
Model(s) ELGDULB3322
OPTIONAL ACCESSORIES
Bottom Grid:
LKOBG1415SS
Drain:
LKD35, LKS35, LK99
Faucet:
LKHA1031, LKHA2031
Soap Dispenser:
LKHA1054
Installation Profile:
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05062017 2222 Camden Court © 2017 Page 2 of 2
ELGDULB3322 Oak Brook, IL 60523 ELGDULB3322_spec.pdf
