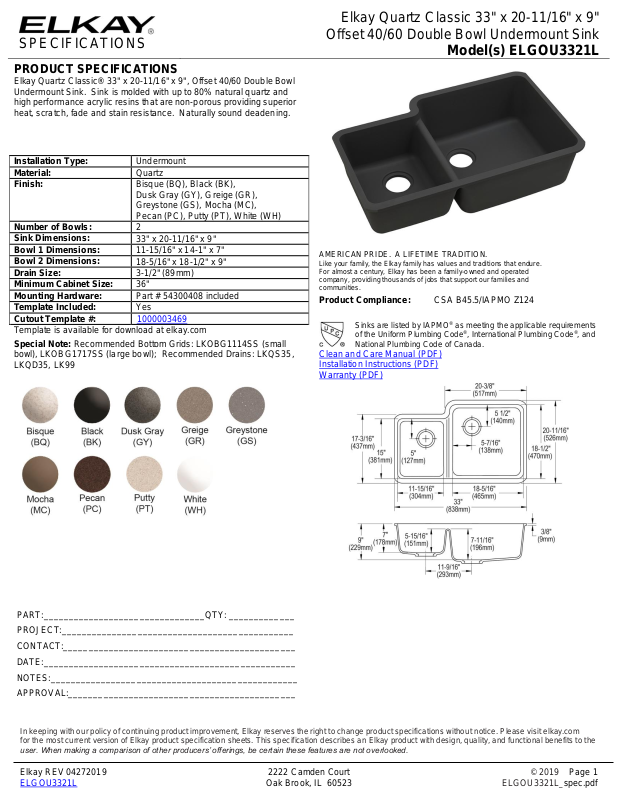

Page 1
SPECIFICATIONS
Elkay Quartz Classic 33" x 20-11/16" x 9"
Offset 40/60 Double Bowl Undermount Sink
Model(s) ELGOU3321L
PRODUCT SPECIFICATIONS
Elkay Quartz Classic® 33" x 20-11/16" x 9", Offset 40/60 Double Bowl
Undermount Sink. Sink is molded with up to 80% natural quartz and
high performance acrylic resins that are non-porous providing superior
heat, scratch, fade and stain resistance. Naturally sound deadening.
Installation Type:
Undermount
Material:
Quartz
Finish:
Bisque (BQ), Black (BK),
Dusk Gray (GY), Greige (GR),
Greystone (GS), Mocha (MC),
Pecan (PC), Putty (PT), White (WH)
Number of Bowls:
2
Sink Dimensions:
33" x 20-11/16" x 9"
Bowl 1 Dimensions:
11-15/16" x 14-1" x 7"
Bowl 2 Dimensions:
18-5/16" x 18-1/2" x 9"
Drain Size:
3-1/2" (89mm)
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300408 included
Template Included:
Yes
Cutout Template #:
1000003469
Template is available for download at elkay.com
Special Note: Recommended Bottom Grids: LKOBG1114SS (small
bowl), LKOBG1717SS (large bowl); Recommended Drains: LKQS35,
LKQD35, LK99
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
CSA B45.5/IAPMO Z124
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04272019 2222 Camden Court © 2019 Page 1
ELGOU3321L Oak Brook, IL 60523 ELGOU3321L_spec.pdf
Page 2
SPECIFICATIONS
Elkay Quartz Classic 33" x 20-11/16" x 9"
Offset 40/60 Double Bowl Undermount Sink
Model(s) ELGOU3321L
Installation Profile:
OPTIONAL ACCESSORIES
Bottom Grid:
LKOBG1114SS (small bowl),
LKOBG1717SS (large bowl)
Drain:
LKQS35, LKQD35, LK99
Faucet:
LK6000CR, LKEC2031
Soap Dispenser:
LKGT1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04272019 2222 Camden Court © 2019 Page 2
ELGOU3321L Oak Brook, IL 60523 ELGOU3321L_spec.pdf
