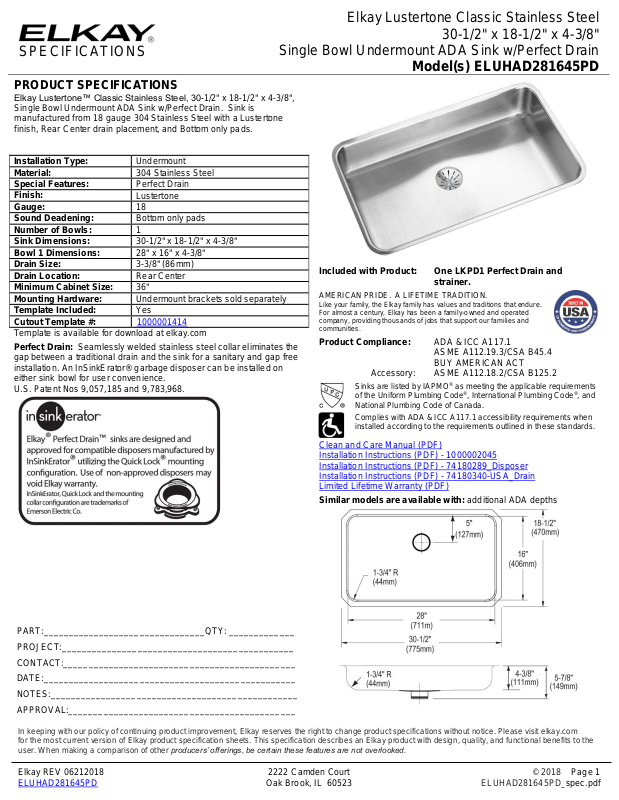

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
30-1/2" x 18-1/2" x 4-3/8"
Single Bowl Undermount ADA Sink w/Perfect Drain
Model(s) ELUHAD281645PD
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel, 30-1/2" x 18-1/2" x 4-3/8",
Single Bowl Undermount ADA Sink w/Perfect Drain. Sink is
manufactured from 18 gauge 304 Stainless Steel with a Lustertone
finish, Rear Center drain placement, and Bottom only pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Perfect Drain
Finish:
Lustertone
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
30-1/2" x 18-1/2" x 4-3/8"
Bowl 1 Dimensions:
28" x 16" x 4-3/8"
Drain Size:
3-3/8" (86mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001414
Template is available for download at elkay.com
Perfect Drain: Seamlessly welded stainless steel collar eliminates the
gap between a traditional drain and the sink for a sanitary and gap free
installation. An InSinkErator® garbage disposer can be installed on
either sink bowl for user convenience.
U.S. Patent Nos 9,057,185 and 9,783,968.
Included with Product:
One LKPD1 Perfect Drain and
strainer.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000002045
Installation Instructions (PDF) - 74180289_Disposer
Installation Instructions (PDF) - 74180340-USA_Drain
Limited Lifetime Warranty (PDF)
Similar models are available with: additional ADA depths
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 06212018 2222 Camden Court © 2018 Page 1
ELUHAD281645PD Oak Brook, IL 60523 ELUHAD281645PD_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
30-1/2" x 18-1/2" x 4-3/8"
Single Bowl Undermount ADA Sink w/Perfect Drain
Model(s) ELUHAD281645PD
Installation Profile:
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG2816SS
Cutting Board:
CB1713*, CBS1316*
Drain:
LKPDVR18B, LKPDAD18B, LKDS99
Faucet:
LKGT1041, LKGT2041
Hardware:
LKUCLIP8 (2 Required)
Rinsing Basket:
LKWERBSS
Soap Dispenser:
LKGT1054
* 1/2" sink reveal required for proper fit.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 06212018 2222 Camden Court © 2018 Page 2
ELUHAD281645PD Oak Brook, IL 60523 ELUHAD281645PD_spec.pdf
