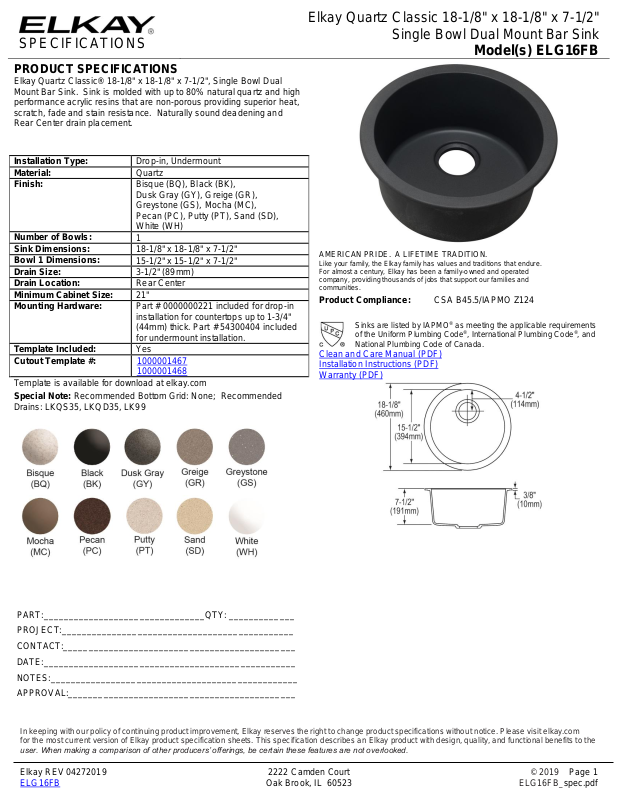

Page 1
SPECIFICATIONS
Elkay Quartz Classic 18-1/8" x 18-1/8" x 7-1/2"
Single Bowl Dual Mount Bar Sink
Model(s) ELG16FB
PRODUCT SPECIFICATIONS
Elkay Quartz Classic® 18-1/8" x 18-1/8" x 7-1/2", Single Bowl Dual
Mount Bar Sink. Sink is molded with up to 80% natural quartz and high
performance acrylic resins that are non-porous providing superior heat,
scratch, fade and stain resistance. Naturally sound deadening and
Rear Center drain placement.
Installation Type:
Drop-in, Undermount
Material:
Quartz
Finish:
Bisque (BQ), Black (BK),
Dusk Gray (GY), Greige (GR),
Greystone (GS), Mocha (MC),
Pecan (PC), Putty (PT), Sand (SD),
White (WH)
Number of Bowls:
1
Sink Dimensions:
18-1/8" x 18-1/8" x 7-1/2"
Bowl 1 Dimensions:
15-1/2" x 15-1/2" x 7-1/2"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
21"
Mounting Hardware:
Part # 0000000221 included for drop-in
installation for countertops up to 1-3/4"
(44mm) thick. Part # 54300404 included
for undermount installation.
Template Included:
Yes
Cutout Template #:
1000001467
1000001468
Template is available for download at elkay.com
Special Note: Recommended Bottom Grid: None; Recommended
Drains: LKQS35, LKQD35, LK99
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
CSA B45.5/IAPMO Z124
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04272019 2222 Camden Court © 2019 Page 1
ELG16FB Oak Brook, IL 60523 ELG16FB_spec.pdf
Page 2
SPECIFICATIONS
Elkay Quartz Classic 18-1/8" x 18-1/8" x 7-1/2"
Single Bowl Dual Mount Bar Sink
Model(s) ELG16FB
Installation Profile:
OPTIONAL ACCESSORIES
Drain:
LKQS35, LKQD35, LK99
Faucet:
LKHA4032, LKGT2042
Soap Dispenser:
LKGT1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04272019 2222 Camden Court © 2019 Page 2
ELG16FB Oak Brook, IL 60523 ELG16FB_spec.pdf
