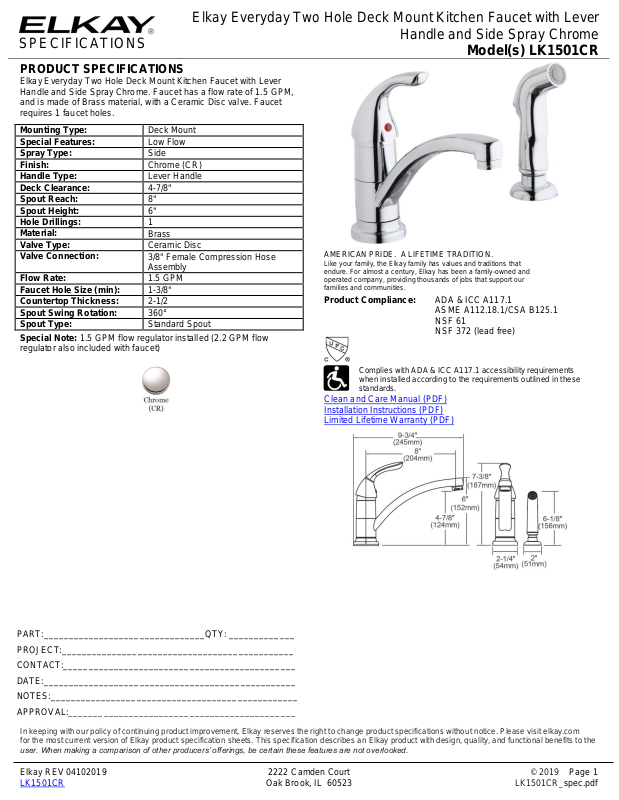

Page 1
SPECIFICATIONS
Elkay Everyday Two Hole Deck Mount Kitchen Faucet with Lever
Handle and Side Spray Chrome
Model(s) LK1501CR
PRODUCT SPECIFICATIONS
Elkay Everyday Two Hole Deck Mount Kitchen Faucet with Lever
Handle and Side Spray Chrome. Faucet has a flow rate of 1.5 GPM,
and is made of Brass material, with a Ceramic Disc valve. Faucet
requires 1 faucet holes.
Mounting Type:
Deck Mount
Special Features:
Low Flow
Spray Type:
Side
Finish:
Chrome (CR)
Handle Type:
Lever Handle
Deck Clearance:
4-7/8"
Spout Reach:
8"
Spout Height:
6"
Hole Drillings:
1
Material:
Brass
Valve Type:
Ceramic Disc
Valve Connection:
3/8" Female Compression Hose
Assembly
Flow Rate:
1.5 GPM
Faucet Hole Size (min):
1-3/8"
Countertop Thickness:
2-1/2
Spout Swing Rotation:
360°
Spout Type:
Standard Spout
Special Note: 1.5 GPM flow regulator installed (2.2 GPM flow
regulator also included with faucet)
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372 (lead free)
Complies with ADA & ICC A117.1 accessibility requirements
when installed according to the requirements outlined in these
standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04102019 2222 Camden Court © 2019 Page 1
LK1501CR Oak Brook, IL 60523 LK1501CR_spec.pdf
Page 2
SPECIFICATIONS
Elkay Everyday Two Hole Deck Mount Kitchen Faucet with Lever
Handle and Side Spray Chrome
Model(s) LK1501CR
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04102019 2222 Camden Court © 2019 Page 2
LK1501CR Oak Brook, IL 60523 LK1501CR_spec.pdf
