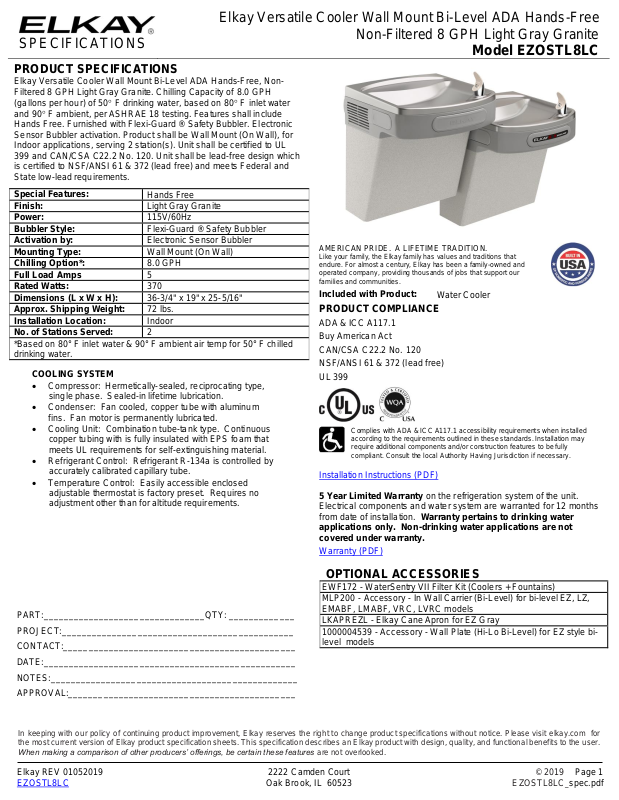

Page 1
SPECIFICATIONS
Elkay Versatile Cooler Wall Mount Bi-Level ADA Hands-Free
Non-Filtered 8 GPH Light Gray Granite
Model EZOSTL8LC
PRODUCT SPECIFICATIONS
Elkay Versatile Cooler Wall Mount Bi-Level ADA Hands-Free, NonFiltered 8 GPH Light Gray Granite. Chilling Capacity of 8.0 GPH
(gallons per hour) of 50 F drinking water, based on 80 F inlet water
and 90 F ambient, per ASHRAE 18 testing. Features shall include
Hands Free. Furnished with Flexi-Guard ® Safety Bubbler. Electronic
Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for
Indoor applications, serving 2 station(s). Unit shall be certified to UL
399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which
is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and
State low-lead requirements.
Special Features:
Hands Free
Finish:
Light Gray Granite
Power:
115V/60Hz
Bubbler Style:
Flexi-Guard ® Safety Bubbler
Activation by:
Electronic Sensor Bubbler
Mounting Type:
Wall Mount (On Wall)
Chilling Option*:
8.0 GPH
Full Load Amps
5
Rated Watts:
370
Dimensions (L x W x H):
36-3/4" x 19" x 25-5/16"
Approx. Shipping Weight:
72 lbs.
Installation Location:
Indoor
No. of Stations Served:
2
*Based on 80° F inlet water & 90° F ambient air temp for 50° F chilled
drinking water.
COOLING SYSTEM
Compressor: Hermetically-sealed, reciprocating type,
single phase. Sealed-in lifetime lubrication.
Condenser: Fan cooled, copper tube with aluminum
fins. Fan motor is permanently lubricated.
Cooling Unit: Combination tube-tank type. Continuous
copper tubing with is fully insulated with EPS foam that
meets UL requirements for self-extinguishing material.
Refrigerant Control: Refrigerant R-134a is controlled by
accurately calibrated capillary tube.
Temperature Control: Easily accessible enclosed
adjustable thermostat is factory preset. Requires no
adjustment other than for altitude requirements.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Included with Product:
Water Cooler
PRODUCT COMPLIANCE
ADA & ICC A117.1
Buy American Act
CAN/CSA C22.2 No. 120
NSF/ANSI 61 & 372 (lead free)
UL 399
Complies with ADA & ICC A117.1 accessibility requirements when installed
according to the requirements outlined in these standards. Installation may
require additional components and/or construction features to be fully
compliant. Consult the local Authority Having Jurisdiction if necessary.
Installation Instructions (PDF)
5 Year Limited Warranty on the refrigeration system of the unit.
Electrical components and water system are warranted for 12 months
from date of installation. Warranty pertains to drinking water
applications only. Non-drinking water applications are not
covered under warranty.
Warranty (PDF)
OPTIONAL ACCESSORIES
EWF172 - WaterSentry VII Filter Kit (Coolers + Fountains)
MLP200 - Accessory - In Wall Carrier (Bi-Level) for bi-level EZ, LZ,
EMABF, LMABF, VRC, LVRC models
LKAPREZL - Elkay Cane Apron for EZ Gray
1000004539 - Accessory - Wall Plate (Hi-Lo Bi-Level) for EZ style bilevel models
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers’ offerings, be certain these features are not overlooked.
