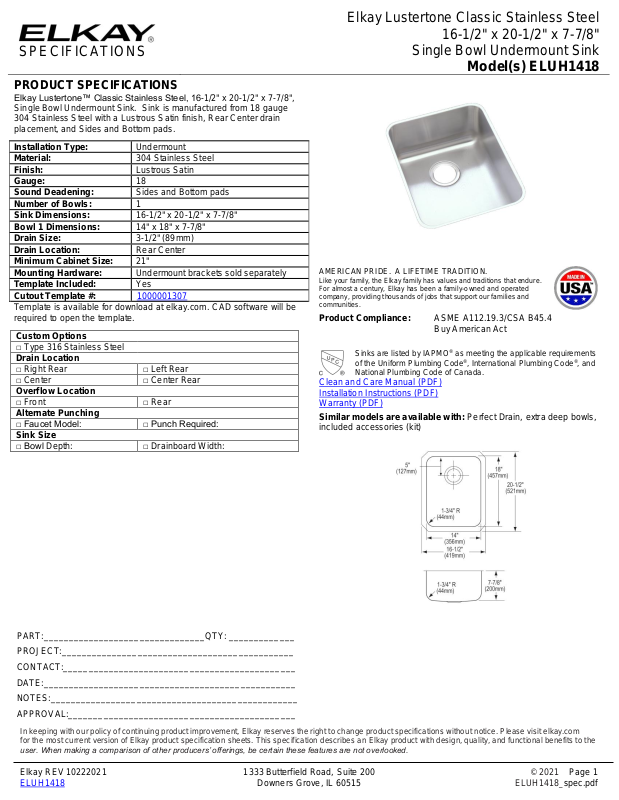

SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
16-1/2" x 20-1/2" x 7-7/8"
Single Bowl Undermount Sink
Model(s) ELUH1418
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel, 16-1/2" x 20-1/2" x 7-7/8",
Single Bowl Undermount Sink. Sink is manufactured from 18 gauge
304 Stainless Steel with a Lustrous Satin finish, Rear Center drain
placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
1
Sink Dimensions:
16-1/2" x 20-1/2" x 7-7/8"
Bowl 1 Dimensions:
14" x 18" x 7-7/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
21"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001307
Template is available for download at elkay.com. CAD software will be
required to open the template.
Custom Options
□ Type 316 Stainless Steel
Drain Location
□ Right Rear
□ Left Rear
□ Center
□ Center Rear
Overflow Location
□ Front
□ Rear
Alternate Punching
□ Faucet Model:
□ Punch Required:
Sink Size
□ Bowl Depth:
□ Drainboard Width:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Buy American Act
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
Similar models are available with: Perfect Drain, extra deep bowls,
included accessories (kit)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10222021 1333 Butterfield Road, Suite 200 © 2021 Page 1
ELUH1418 Downers Grove, IL 60515 ELUH1418_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
16-1/2" x 20-1/2" x 7-7/8"
Single Bowl Undermount Sink
Model(s) ELUH1418
Installation Profile:
Optional Accessories
LKWOBG1418SS
Elkay Stainless Steel 13" x 17" x 1" Bottom Grid
Spec Sheet (PDF)
CBS1418
Elkay Hardwood 15" x 19" x 3/4" Cutting Board
Spec Sheet (PDF)
LK99
Elkay Deluxe 3-1/2" Drain Type 304 Stainless Steel Body Strainer Basket Rubber
Seal and Tailpiece
Spec Sheet (PDF)
LKWRB1418SS
Elkay Stainless Steel 13" x 17" x 7" Rinsing Basket
Spec Sheet (PDF)
