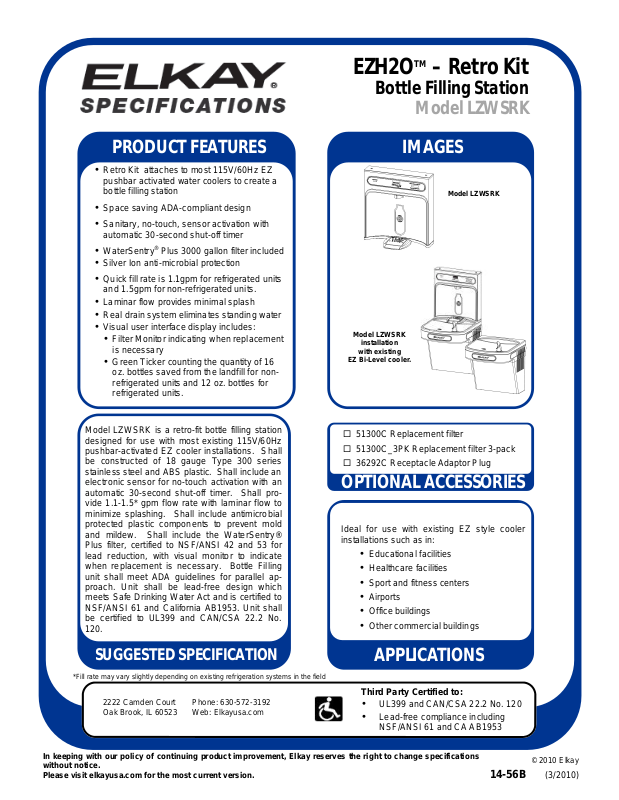

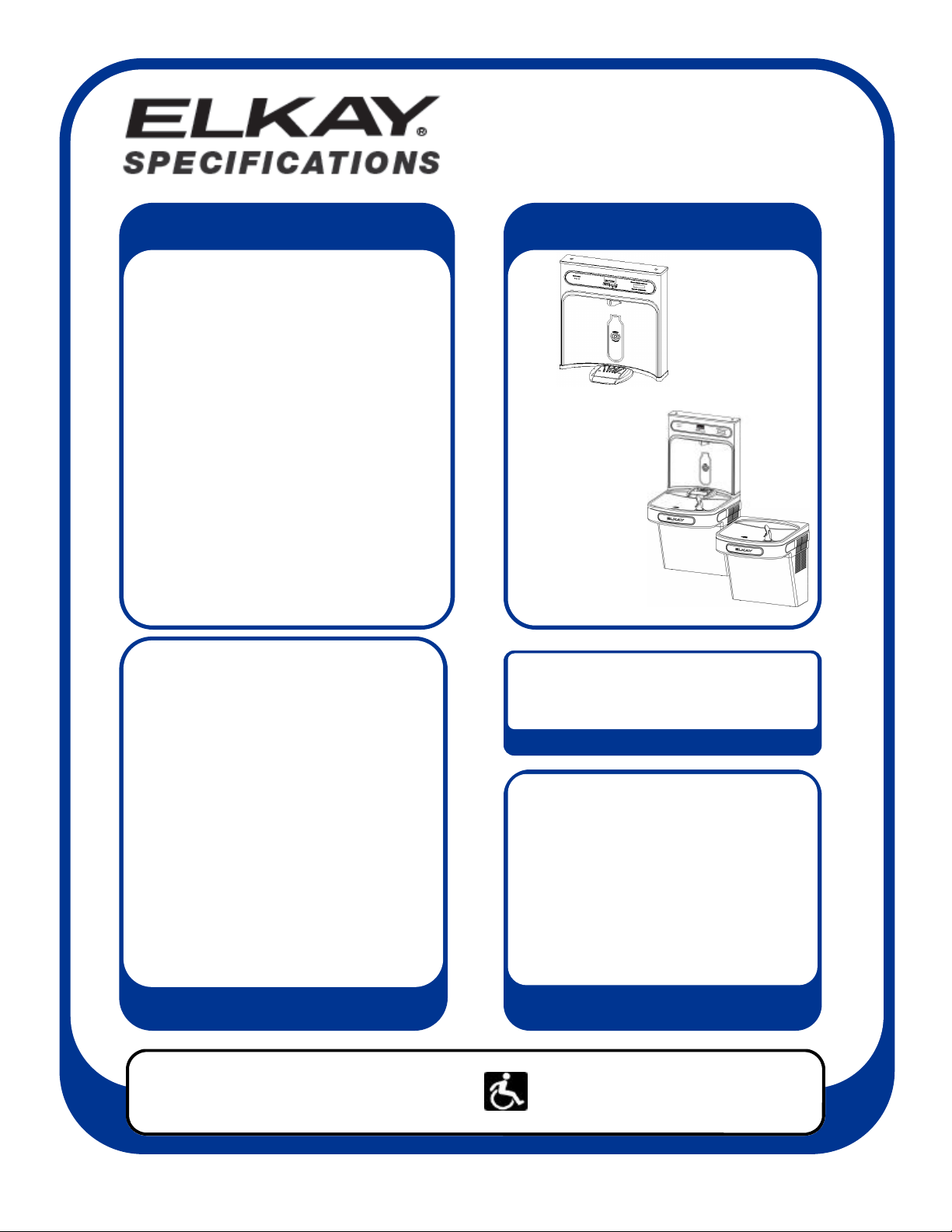

EZH2OTM – Retro Kit
Bottle Filling Station
Model LZWSRK
PRODUCT FEATURES
• Retro Kit attaches to most 115V/60Hz EZ
pushbar activated water coolers to create a
bottle filling station
• Space saving ADA-compliant design
• Sanitary, no-touch, sensor activation with
automatic 30-second shut-off timer
• WaterSentry
• Silver Ion anti-microbial protection
• Quick fill rate is 1.1gpm for refrigerated units
and 1.5gpm for non-refrigerated units.
• Laminar flow provides minimal splash
• Real drain system eliminates standing water
• Visual user interface display includes:
• Filter Monitor indicating when replacement
is necessary
• Green Ticker counting the quantity of 16
oz. bottles saved from the landfill for nonrefrigerated units and 12 oz. bottles for
refrigerated units.
Model LZWSRK is a retro-fit bottle filling station
designed for use with most existing 115V/60Hz
pushbar-activated EZ cooler installations. Shall
be constructed of 18 gauge Type 300 series
stainless steel and ABS plastic. Shall include an
electronic sensor for no-touch activation with an
automatic 30-second shut-off timer. Shall provide 1.1-1.5* gpm flow rate with laminar flow to
minimize splashing. Shall include antimicrobial
protected plastic components to prevent mold
and mildew. Shall include the WaterSentry®
Plus filter, certified to NSF/ANSI 42 and 53 for
lead reduction, with visual monitor to indicate
when replacement is necessary. Bottle Filling
unit shall meet ADA guidelines for parallel approach. Unit shall be lead-free design which
meets Safe Drinking Water Act and is certified to
NSF/ANSI 61 and California AB1953. Unit shall
be certified to UL399 and CAN/CSA 22.2 No.
120.
®
Plus 3000 gallon filter included
IMAGES
Model LZWSRK
Model LZWSRK
installation
with existing
EZ Bi-Level cooler.
¨ 51300C Replacement filter
¨ 51300C_3PK Replacement filter 3-pack
¨ 36292C Receptacle Adaptor Plug
OPTIONAL ACCESSORIES
Ideal for use with existing EZ style cooler
installations such as in:
• Educational facilities
• Healthcare facilities
• Sport and fitness centers
• Airports
• Office buildings
• Other commercial buildings
SUGGESTED SPECIFICATION
SUGGESTED SPECIFICATION
*Fill rate may vary slightly depending on existing refrigeration systems in the field
2222 Camden Court
Oak Brook, IL 60523
In keeping with our policy of continuing product improvement, Elkay reserves the right to change specifications
without notice.
Please visit elkayusa.com for the most current version.
Phone: 630-572-3192
Web: Elkayusa.com
APPLICATIONS
Third Party Certified to:
• UL399 and CAN/CSA 22.2 No. 120
• Lead-free compliance including
NSF/ANSI 61 and CA AB1953
© 2010 Elkay
14-56B (3/2010)
Page 2
ELKAY
®
ELECTRICAL
EZH2O Station equipped with electric cord and three-
prong molded rubber plug for use with 15-amp minimum
receptacle. Rated at 115 volt, 60 Hz, single phase.
Model LZWSRK
Bi-Level Cooler Installation
ROUGH-IN DIMENSIONS
Job Name: ________________________________________
Date: __________________________________ Qty: ______
Contact Info (Name, Phone, Email): _____________________
__________________________________________________
__________________________________________________
Approval for Manufacture Signature and Date:
__________________________________________________
Single Cooler Installation
*Rated for Indoor Use Only
EZH2O is designed to fit on an EZ Cooler which is properly
installed per the EZ Spec Sheet rough-in design.
2222 Camden Court
Oak Brook, IL 60523
Phone: 630-572-3192
Web: Elkayusa.com
Specifications and measurements are subject to change
without notification.
Retro Kit will include a punch to create hole in basin
already pressurized. Single EZ style coolers will need to be pressurized.
Installation Notes:
• Unit will mount on bracket attached to wall by 6 holes (as shown above)
• Water and electrical will connect through a hole punched into basin.
• Cooler must be pressurized. Bi-level and glass filler prepped units are
Please visit elkayusa.com for most current version.
