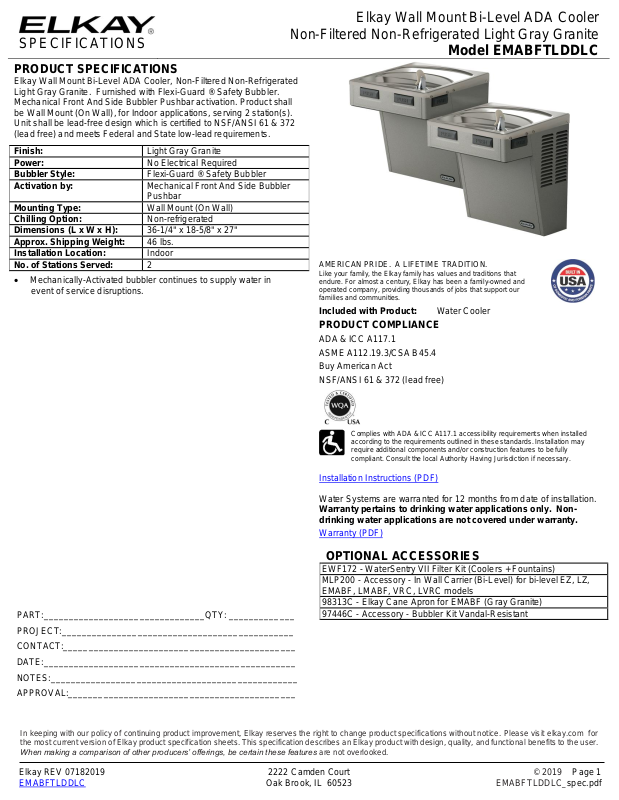

Page 1
SPECIFICATIONS
Elkay Wall Mount Bi-Level ADA Cooler
Non-Filtered Non-Refrigerated Light Gray Granite
Model EMABFTLDDLC
PRODUCT SPECIFICATIONS
Elkay Wall Mount Bi-Level ADA Cooler, Non-Filtered Non-Refrigerated
Light Gray Granite. Furnished with Flexi-Guard ® Safety Bubbler.
Mechanical Front And Side Bubbler Pushbar activation. Product shall
be Wall Mount (On Wall), for Indoor applications, serving 2 station(s).
Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372
(lead free) and meets Federal and State low-lead requirements.
Finish:
Light Gray Granite
Power:
No Electrical Required
Bubbler Style:
Flexi-Guard ® Safety Bubbler
Activation by:
Mechanical Front And Side Bubbler
Pushbar
Mounting Type:
Wall Mount (On Wall)
Chilling Option:
Non-refrigerated
Dimensions (L x W x H):
36-1/4" x 18-5/8" x 27"
Approx. Shipping Weight:
46 lbs.
Installation Location:
Indoor
No. of Stations Served:
2
Mechanically-Activated bubbler continues to supply water in
event of service disruptions.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Included with Product:
Water Cooler
PRODUCT COMPLIANCE
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Buy American Act
NSF/ANSI 61 & 372 (lead free)
Complies with ADA & ICC A117.1 accessibility requirements when installed
according to the requirements outlined in these standards. Installation may
require additional components and/or construction features to be fully
compliant. Consult the local Authority Having Jurisdiction if necessary.
Installation Instructions (PDF)
Water Systems are warranted for 12 months from date of installation.
Warranty pertains to drinking water applications only. Nondrinking water applications are not covered under warranty.
Warranty (PDF)
OPTIONAL ACCESSORIES
EWF172 - WaterSentry VII Filter Kit (Coolers + Fountains)
MLP200 - Accessory - In Wall Carrier (Bi-Level) for bi-level EZ, LZ,
EMABF, LMABF, VRC, LVRC models
98313C - Elkay Cane Apron for EMABF (Gray Granite)
97446C - Accessory - Bubbler Kit Vandal-Resistant
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 07182019 2222 Camden Court © 2019 Page 1
EMABFTLDDLC Oak Brook, IL 60523 EMABFTLDDLC_spec.pdf

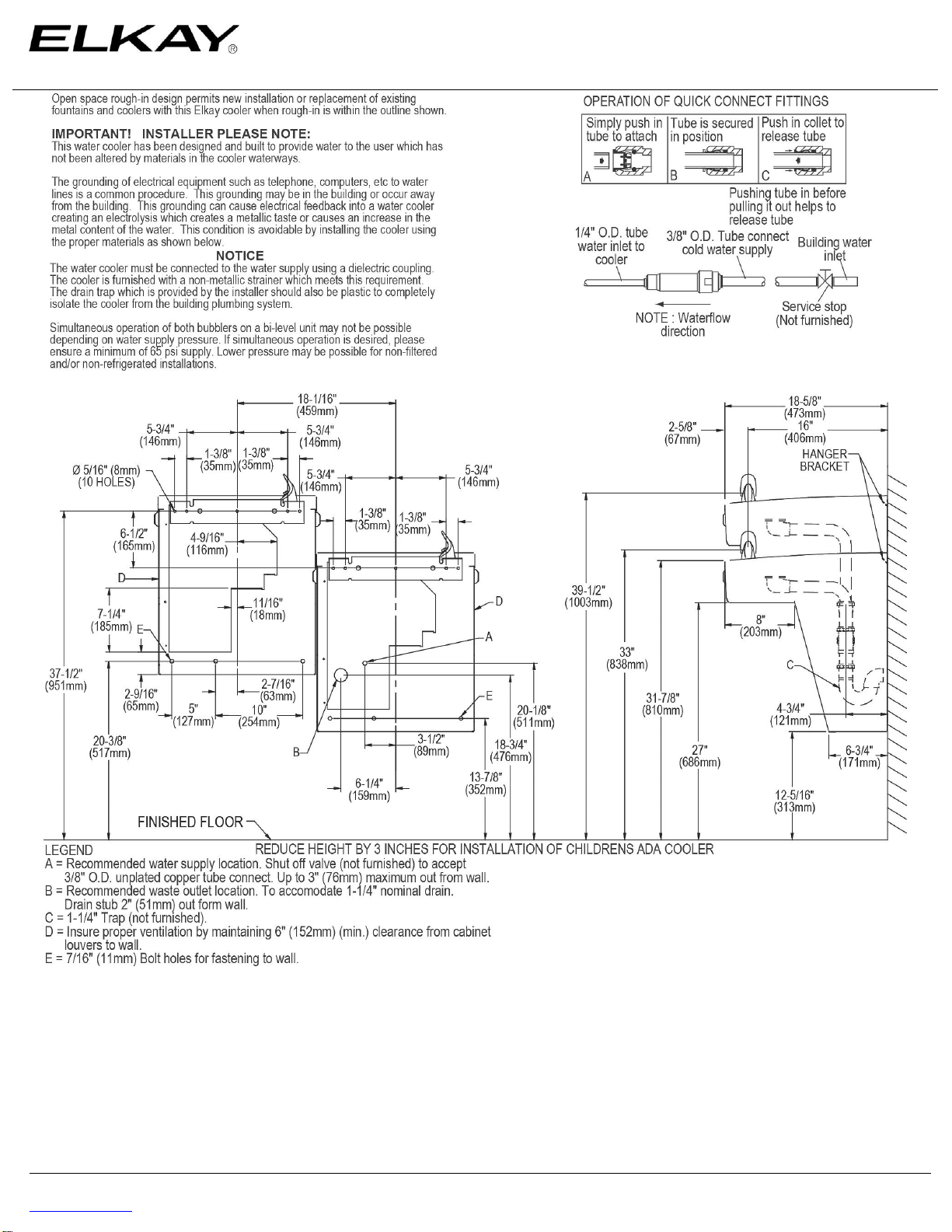

Page 2
SPECIFICATIONS
Elkay Wall Mount Bi-Level ADA Cooler
Non-Filtered Non-Refrigerated Light Gray Granite
Model EMABFTLDDLC
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 07182019 2222 Camden Court © 2019 Page 2
EMABFTLDDLC Oak Brook, IL 60523 EMABFTLDDLC_spec.pdf
