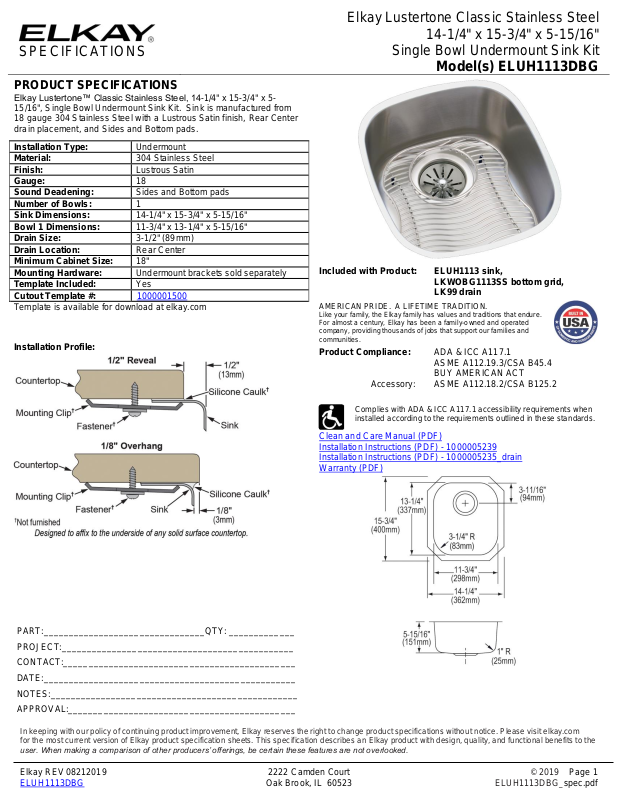

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
14-1/4" x 15-3/4" x 5-15/16"
Single Bowl Undermount Sink Kit
Model(s) ELUH1113DBG
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel, 14-1/4" x 15-3/4" x 515/16", Single Bowl Undermount Sink Kit. Sink is manufactured from
18 gauge 304 Stainless Steel with a Lustrous Satin finish, Rear Center
drain placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
1
Sink Dimensions:
14-1/4" x 15-3/4" x 5-15/16"
Bowl 1 Dimensions:
11-3/4" x 13-1/4" x 5-15/16"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
18"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001500
Template is available for download at elkay.com
Installation Profile:
Included with Product:
ELUH1113 sink,
LKWOBG1113SS bottom grid,
LK99 drain
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000005239
Installation Instructions (PDF) - 1000005235_drain
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08212019 2222 Camden Court © 2019 Page 1
ELUH1113DBG Oak Brook, IL 60523 ELUH1113DBG_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
14-1/4" x 15-3/4" x 5-15/16"
Single Bowl Undermount Sink Kit
Model(s) ELUH1113DBG
OPTIONAL ACCESSORIES
Hardware:
LKUCLIP8
Soap Dispenser:
LKHA1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08212019 2222 Camden Court © 2019 Page 2
ELUH1113DBG Oak Brook, IL 60523 ELUH1113DBG_spec.pdf
