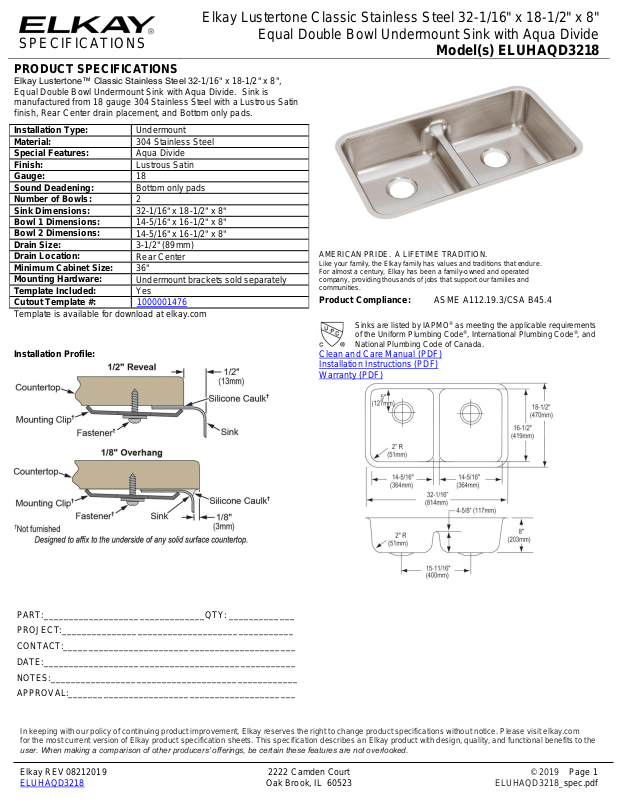

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 32-1/16" x 18-1/2" x 8"
Equal Double Bowl Undermount Sink with Aqua Divide
Model(s) ELUHAQD3218
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 32-1/16" x 18-1/2" x 8",
Equal Double Bowl Undermount Sink with Aqua Divide. Sink is
manufactured from 18 gauge 304 Stainless Steel with a Lustrous Satin
finish, Rear Center drain placement, and Bottom only pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Aqua Divide
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
2
Sink Dimensions:
32-1/16" x 18-1/2" x 8"
Bowl 1 Dimensions:
14-5/16" x 16-1/2" x 8"
Bowl 2 Dimensions:
14-5/16" x 16-1/2" x 8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001476
Template is available for download at elkay.com
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08212019 2222 Camden Court © 2019 Page 1
ELUHAQD3218 Oak Brook, IL 60523 ELUHAQD3218_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 32-1/16" x 18-1/2" x 8"
Equal Double Bowl Undermount Sink with Aqua Divide
Model(s) ELUHAQD3218
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG1416SS
Cutting Board:
LKCB1216HW*
Drain:
LK99
Hardware:
LKUCLIP8 (2 Required)
* 1/2" sink reveal required for proper fit.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08212019 2222 Camden Court © 2019 Page 2
ELUHAQD3218 Oak Brook, IL 60523 ELUHAQD3218_spec.pdf
