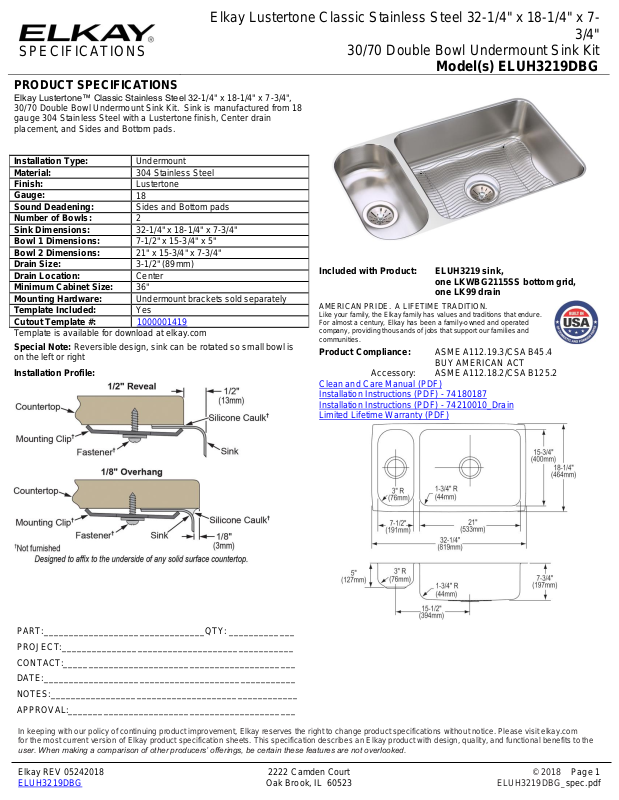

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 32-1/4" x 18-1/4" x 7-
3/4"
30/70 Double Bowl Undermount Sink Kit
Model(s) ELUH3219DBG
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 32-1/4" x 18-1/4" x 7-3/4",
30/70 Double Bowl Undermount Sink Kit. Sink is manufactured from 18
gauge 304 Stainless Steel with a Lustertone finish, Center drain
placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustertone
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
32-1/4" x 18-1/4" x 7-3/4"
Bowl 1 Dimensions:
7-1/2" x 15-3/4" x 5"
Bowl 2 Dimensions:
21" x 15-3/4" x 7-3/4"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001419
Template is available for download at elkay.com
Special Note: Reversible design, sink can be rotated so small bowl is
on the left or right
Installation Profile:
Included with Product:
ELUH3219 sink,
one LKWBG2115SS bottom grid,
one LK99 drain
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 74180187
Installation Instructions (PDF) - 74210010_Drain
Limited Lifetime Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05242018 2222 Camden Court © 2018 Page 1
ELUH3219DBG Oak Brook, IL 60523 ELUH3219DBG_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 32-1/4" x 18-1/4" x 7-
3/4"
30/70 Double Bowl Undermount Sink Kit
Model(s) ELUH3219DBG
OPTIONAL ACCESSORIES
Cutting Board:
CB1516*, CB816*, CBS715*
Faucet:
LKGT1041, LKGT2041
Hardware:
LKUCLIP8 (2 Required)
Rinsing Basket:
LKWRB2115SS, LKWRB715SS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
* 1/2" sink reveal required for proper fit.
