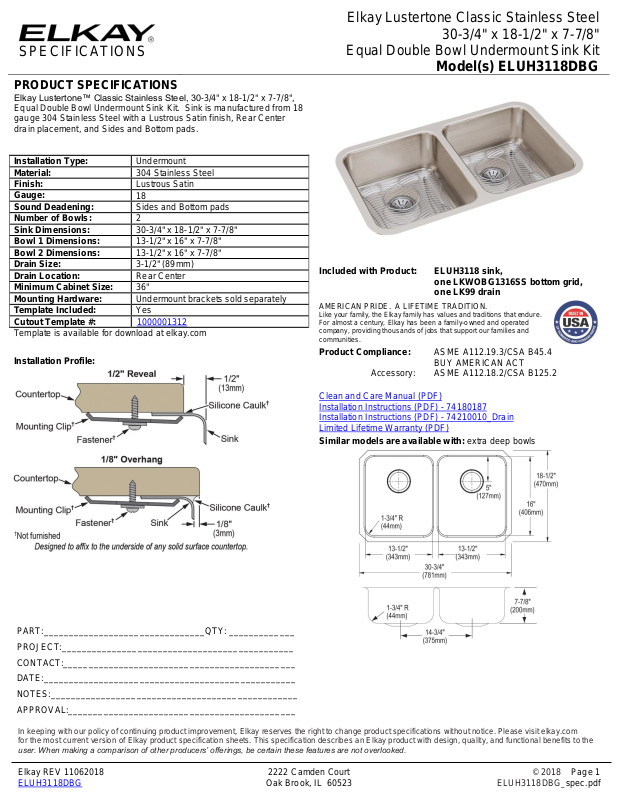

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
30-3/4" x 18-1/2" x 7-7/8"
Equal Double Bowl Undermount Sink Kit
Model(s) ELUH3118DBG
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel, 30-3/4" x 18-1/2" x 7-7/8",
Equal Double Bowl Undermount Sink Kit. Sink is manufactured from 18
gauge 304 Stainless Steel with a Lustrous Satin finish, Rear Center
drain placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
30-3/4" x 18-1/2" x 7-7/8"
Bowl 1 Dimensions:
13-1/2" x 16" x 7-7/8"
Bowl 2 Dimensions:
13-1/2" x 16" x 7-7/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001312
Template is available for download at elkay.com
Installation Profile:
Included with Product:
ELUH3118 sink,
one LKWOBG1316SS bottom grid,
one LK99 drain
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 74180187
Installation Instructions (PDF) - 74210010_Drain
Limited Lifetime Warranty (PDF)
Similar models are available with: extra deep bowls
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 1
ELUH3118DBG Oak Brook, IL 60523 ELUH3118DBG_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel
30-3/4" x 18-1/2" x 7-7/8"
Equal Double Bowl Undermount Sink Kit
Model(s) ELUH3118DBG
OPTIONAL ACCESSORIES
Cutting Board:
CB1613*, CB1713*, CBS1316*
Faucet:
LKGT1041, LKGT2041
Hardware:
LKUCLIP8 (2 Required)
Rinsing Basket:
LKWRB1316SS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
* 1/2" sink reveal required for proper fit.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 2
ELUH3118DBG Oak Brook, IL 60523 ELUH3118DBG_spec.pdf
