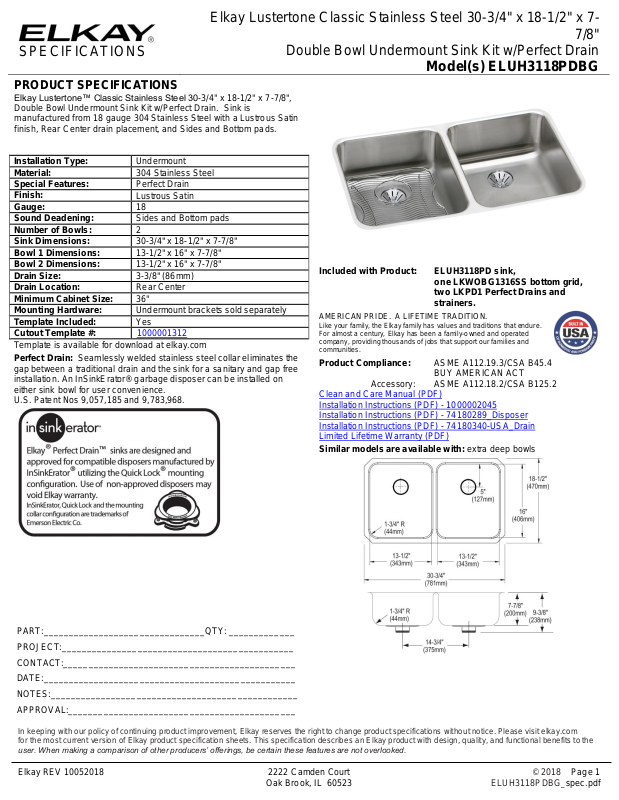

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 30-3/4" x 18-1/2" x 7-
7/8"
Double Bowl Undermount Sink Kit w/Perfect Drain
Model(s) ELUH3118PDBG
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 30-3/4" x 18-1/2" x 7-7/8",
Double Bowl Undermount Sink Kit w/Perfect Drain. Sink is
manufactured from 18 gauge 304 Stainless Steel with a Lustrous Satin
finish, Rear Center drain placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Perfect Drain
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
30-3/4" x 18-1/2" x 7-7/8"
Bowl 1 Dimensions:
13-1/2" x 16" x 7-7/8"
Bowl 2 Dimensions:
13-1/2" x 16" x 7-7/8"
Drain Size:
3-3/8" (86mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001312
Template is available for download at elkay.com
Perfect Drain: Seamlessly welded stainless steel collar eliminates the
gap between a traditional drain and the sink for a sanitary and gap free
installation. An InSinkErator® garbage disposer can be installed on
either sink bowl for user convenience.
U.S. Patent Nos 9,057,185 and 9,783,968.
Included with Product:
ELUH3118PD sink,
one LKWOBG1316SS bottom grid,
two LKPD1 Perfect Drains and
strainers.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000002045
Installation Instructions (PDF) - 74180289_Disposer
Installation Instructions (PDF) - 74180340-USA_Drain
Limited Lifetime Warranty (PDF)
Similar models are available with: extra deep bowls
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10052018 2222 Camden Court © 2018 Page 1
Oak Brook, IL 60523 ELUH3118PDBG_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 30-3/4" x 18-1/2" x 7-
7/8"
Double Bowl Undermount Sink Kit w/Perfect Drain
Model(s) ELUH3118PDBG
Installation Profile:
OPTIONAL ACCESSORIES
Cutting Board:
CB1613*, CB1713*, CBS1316*
Drain:
LKPDVR18B, LKDS99, LKDS35
Faucet:
LKGT1041, LKGT2041
Hardware:
LKUCLIP8 (2 Required)
Rinsing Basket:
LKWRB1316SS, LKWERBSS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
* 1/2" sink reveal required for proper fit.
