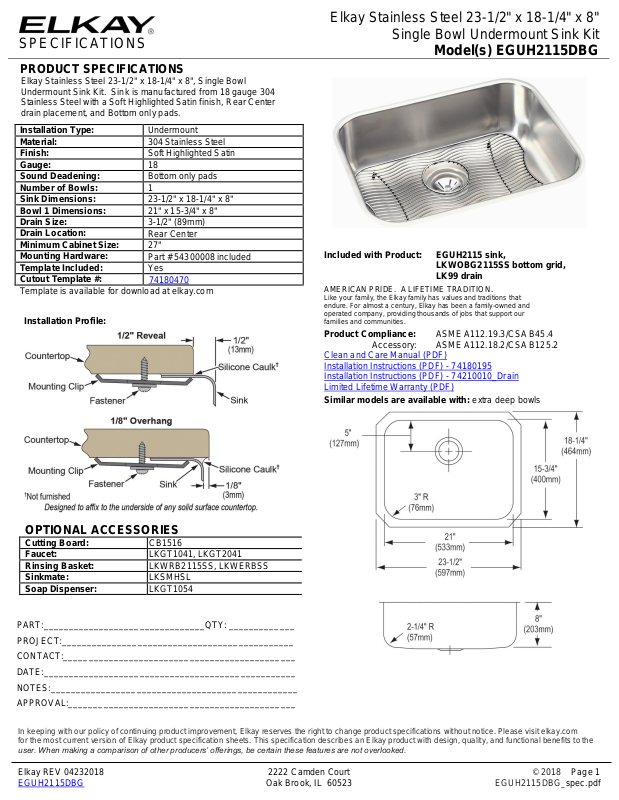

SPECIFICATIONS
Elkay Stainless Steel 23-1/2" x 18-1/4" x 8"
Single Bowl Undermount Sink Kit
Model(s) EGUH2115DBG
PRODUCT SPECIFICATIONS
Elkay Stainless Steel 23-1/2" x 18-1/4" x 8", Single Bowl
Undermount Sink Kit. Sink is manufactured from 18 gauge 304
Stainless Steel with a Soft Highlighted Satin finish, Rear Center
drain placement, and Bottom only pads.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Soft Highlighted Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
23-1/2" x 18-1/4" x 8"
Bowl 1 Dimensions:
21" x 15-3/4" x 8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Part # 54300008 included
Template Included:
Yes
Cutout Template #:
74180470
Template is available for download at elkay.com
Included with Product:
EGUH2115 sink,
LKWOBG2115SS bottom grid,
LK99 drain
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 74180195
Installation Instructions (PDF) - 74210010_Drain
Limited Lifetime Warranty (PDF)
Similar models are available with: extra deep bowls
OPTIONAL ACCESSORIES
Cutting Board:
CB1516
Faucet:
LKGT1041, LKGT2041
Rinsing Basket:
LKWRB2115SS, LKWERBSS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
Installation Profile:
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04232018 2222 Camden Court © 2018 Page 1
EGUH2115DBG Oak Brook, IL 60523 EGUH2115DBG_spec.pdf
