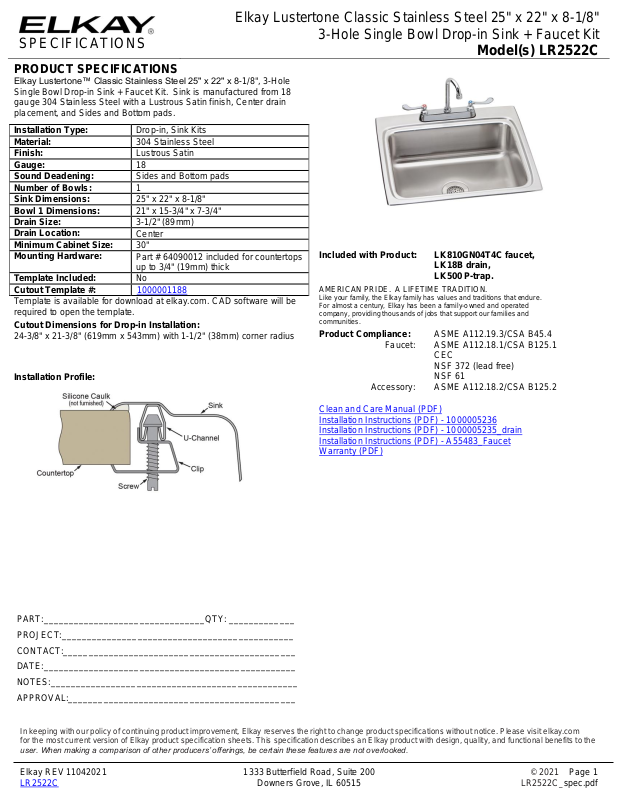

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 25" x 22" x 8-1/8"
3-Hole Single Bowl Drop-in Sink + Faucet Kit
Model(s) LR2522C
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 25" x 22" x 8-1/8", 3-Hole
Single Bowl Drop-in Sink + Faucet Kit. Sink is manufactured from 18
gauge 304 Stainless Steel with a Lustrous Satin finish, Center drain
placement, and Sides and Bottom pads.
Installation Type:
Drop-in, Sink Kits
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
1
Sink Dimensions:
25" x 22" x 8-1/8"
Bowl 1 Dimensions:
21" x 15-3/4" x 7-3/4"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
30"
Mounting Hardware:
Part # 64090012 included for countertops
up to 3/4" (19mm) thick
Template Included:
No
Cutout Template #:
1000001188
Template is available for download at elkay.com. CAD software will be
required to open the template.
Cutout Dimensions for Drop-in Installation:
24-3/8" x 21-3/8" (619mm x 543mm) with 1-1/2" (38mm) corner radius
Installation Profile:
Included with Product:
LK810GN04T4C faucet,
LK18B drain,
LK500 P-trap.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Faucet:
ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000005236
Installation Instructions (PDF) - 1000005235_drain
Installation Instructions (PDF) - A55483_Faucet
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11042021 1333 Butterfield Road, Suite 200 © 2021 Page 1
LR2522C Downers Grove, IL 60515 LR2522C_spec.pdf

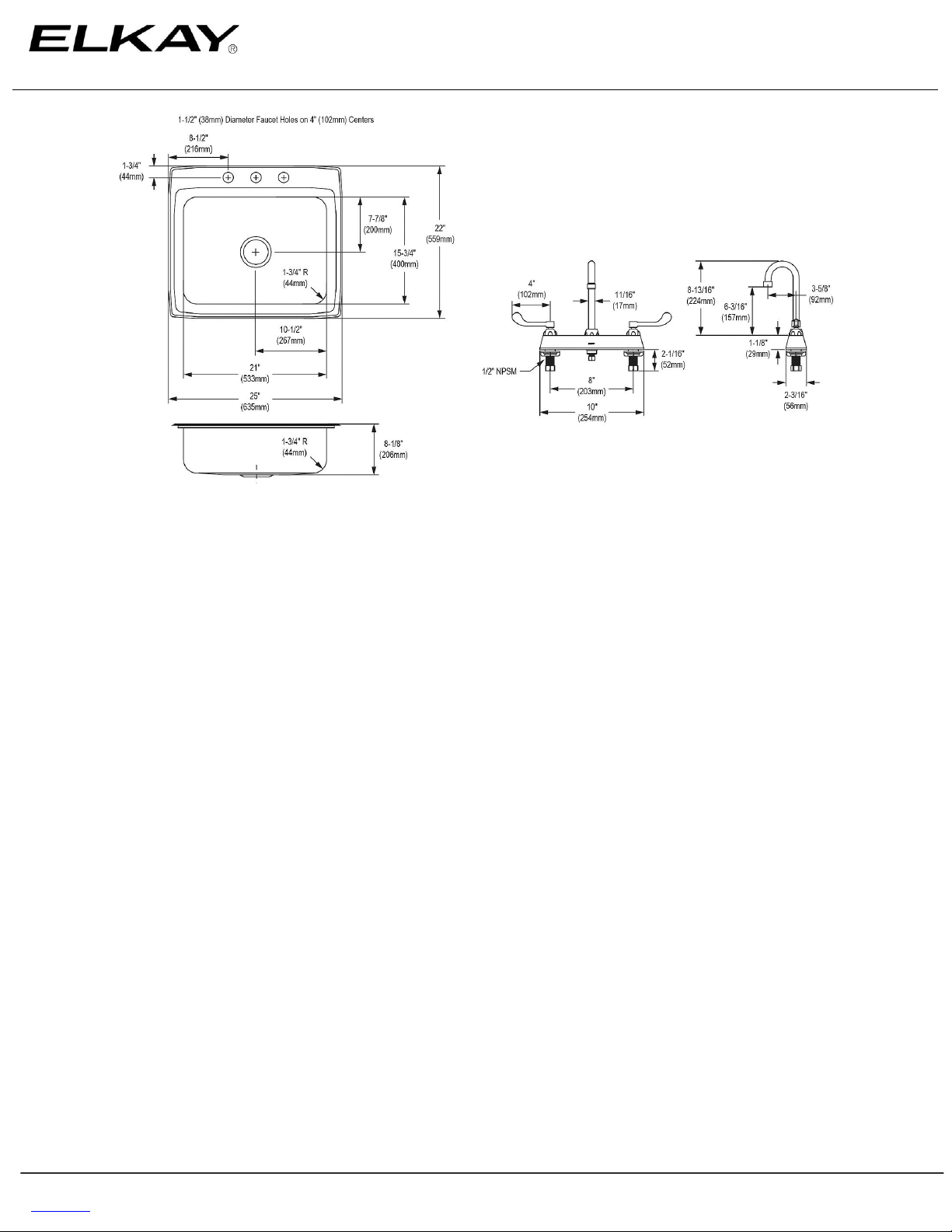

Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 25" x 22" x 8-1/8"
3-Hole Single Bowl Drop-in Sink + Faucet Kit
Model(s) LR2522C
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11042021 1333 Butterfield Road, Suite 200 © 2021 Page 2
LR2522C Downers Grove, IL 60515 LR2522C_spec.pdf
