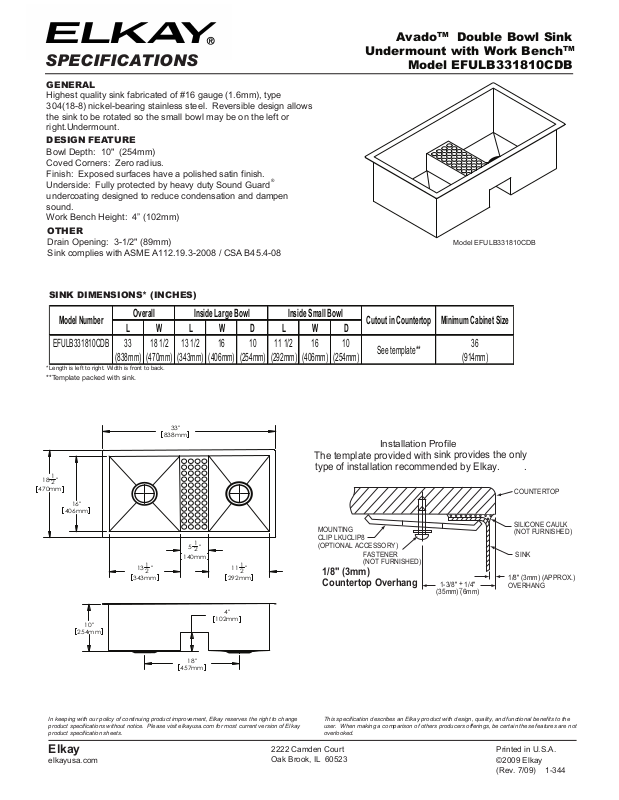

Page 1
AvadoTM Double Bowl Sink
Undermount with Work Bench
33
(838mm)
18 1/2
(470mm)
13 1/2
(343mm)
16
(406mm)
10
(254mm)
11 1/2
(292mm)
16
(406mm)
10
(254mm)
36
(914mm)
SPECIFICATIONS
GENERAL
Highest quality sink fabricated of #16 gauge (1.6mm), type
304(18-8) nickel-bearing stainless steel. Reversible design allows
the sink to be rotated so the small bowl may be on the left or
right.Undermount.
DESIGN FEATURE
Bowl Depth: 10" (254mm)
Coved Corners: Zero radius.
Finish: Exposed surfaces have a polished satin finish.
Underside: Fully protected by heavy duty Sound Guard
undercoating designed to reduce condensation and dampen
sound.
Work Bench Height: 4” (102mm)
OTHER
Drain Opening: 3-1/2" (89mm)
Sink complies with ASME A112.19.3-2008 / CSA B45.4-08

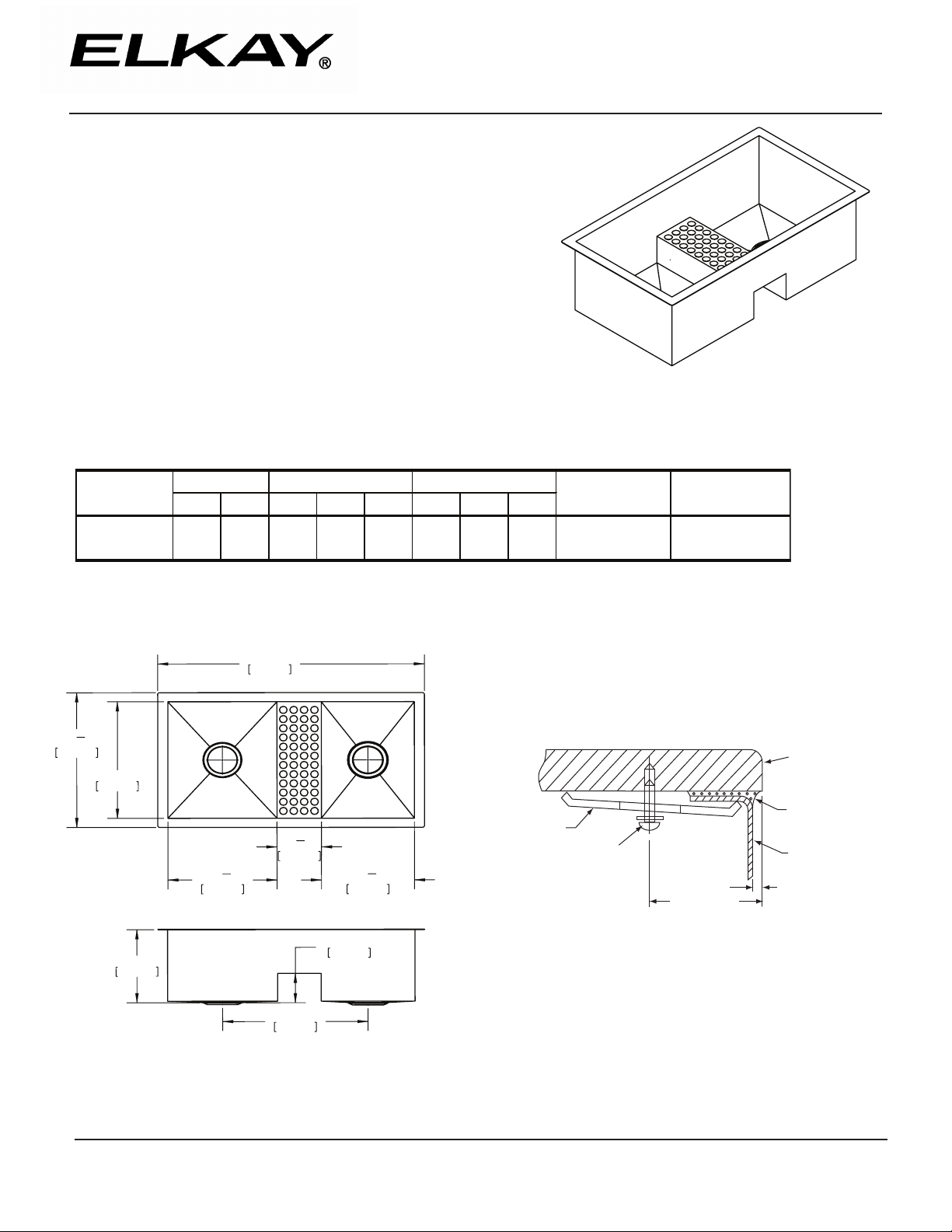

SINK DIMENSIONS* (INCHES)
®
TM
Model EFULB331810CDB
Model EFULB331810CDB
Model Number Cutout in Countertop Minimum Cabinet Size
L W L W D L W D
EFULB331810CDB
*Length is left to right. Width is front to back.
**Template packed with sink.
33"
838mm
Inside Small BowlInside Large BowlOverall
See template**
Installation Profile
The template provided with
sink provides the only
type of in stallation recommended by Elkay. .
1
"
18
2
470mm
16"
406mm
MOUNTING
CLIP LKUCLIP8
(OPTIONAL ACCESSORY)
FASTENER
(NOT FURNISHED)
1/8" (3mm)
Countertop
Overhang
1-3/8" +1/4"
_
(35mm) (6mm)
1
13
2
343mm
1
"
5
2
140mm
"
1
2
292mm
"11
COUNTERTOP
SILICONE CAULK
(NOT FURNISHED)
SINK
1/8" (3mm) (APPROX.)
OVERHANG
4"
10"
254mm
457mm
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
102mm
18"
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of others producers offerings, be certain these features are not
overlooked.
Printed in U.S.A.
©2009 Elkay
(Rev. 7/09) 1-344
Page 2
SPECIFICATIONS
Mounting Clips: LKUCLIP8
Utensil Caddy for Rinsing Basket: LKWUCSS
Drain: LK99
**Fits Countertop opening.

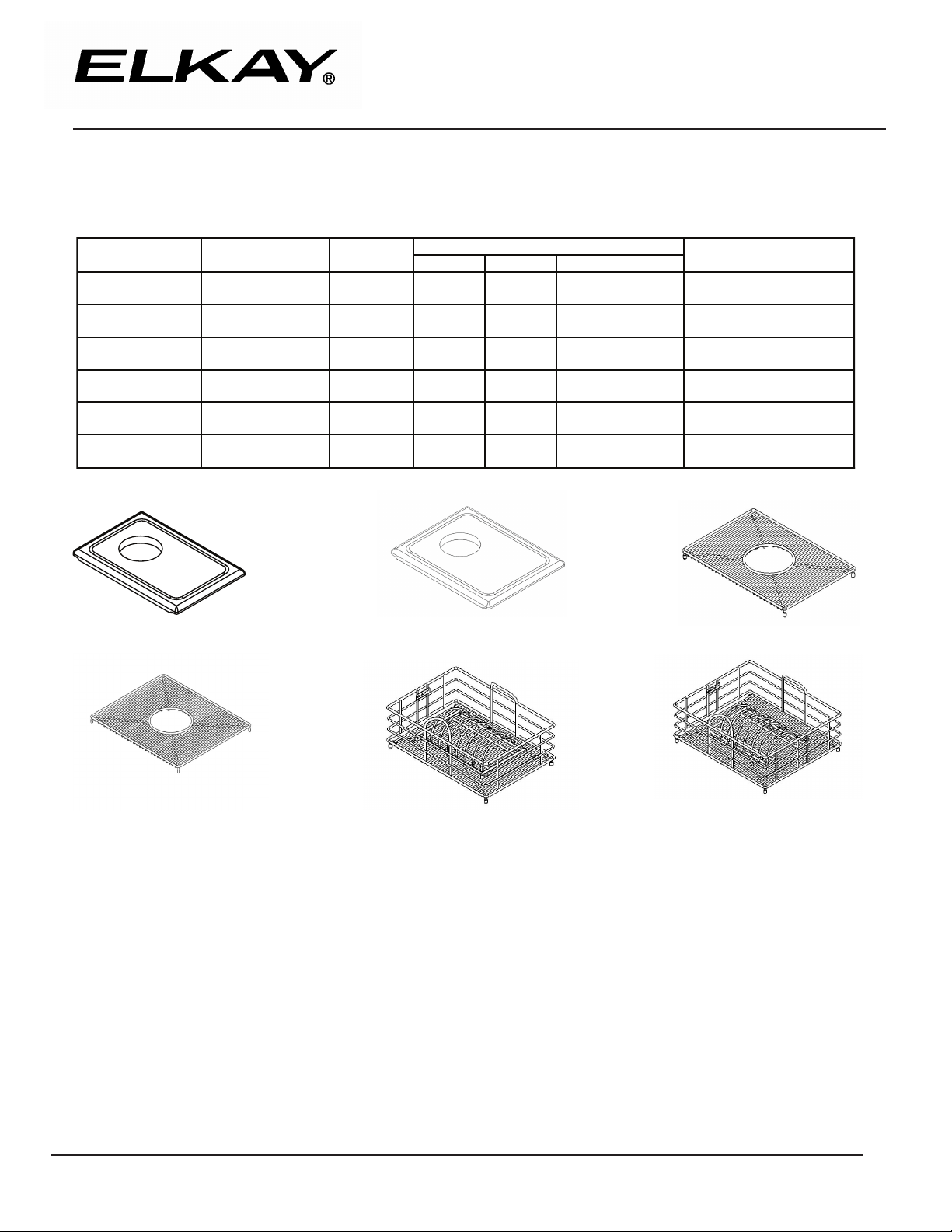

AvadoTM Double Bowl Sink
LKCBF1316HW Cutting Board** Left
(337mm)
(429mm)
(25mm)
LKCBF1116HW Cutting Board** Right
11 1/4
(286mm)
16 7/8
(429mm)
1
(25mm)
Hardwood
LKFBG1316SS Bottom Grid Left
12 1/2
(318mm)
15
(381mm)
1 1/8
(29mm)
Polished Stainless Steel
LKFBG1116SS Bottom Grid Right
10 1/2
(267mm)
15
(381mm)
1 1/8
(29mm)
Polished Stainless Steel
LKFRB1316SS Rinsing Basket Left
12 1/2
(318mm)
15
(381mm)
4 3/16
(106mm)
Polished Stainless Steel
LKFRB1116SS Rinsing Basket Right
10 1/2
(267mm)
15
(381mm)
4 3/16
(106mm)
Polished Stainless Steel
Overall
(2 packages recommended)
For Additional Accessories, see table below.
Undermount with Work Bench
Model EFULB331810CDB
TM
*Length is left to right. Width is front to back.
LKCBF1116HW LKCBF1316HW
L W Depth/Thickness
13 1/4
16 7/8
1
Material / FinishModel # Description Bowl
Hardwood
LKFBG1116SS
LKFBG1316SS
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
LKFRB1116SS LKFRB1316SS
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of others producers offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2009 Elkay
(Rev. 7/09) 1-344
