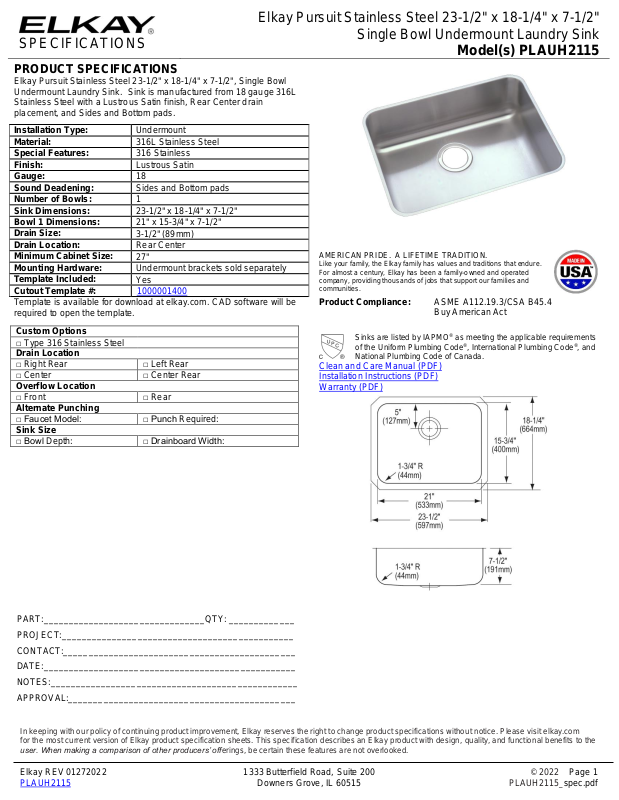

Page 1
SPECIFICATIONS
Elkay Pursuit Stainless Steel 23-1/2" x 18-1/4" x 7-1/2"
Single Bowl Undermount Laundry Sink
Model(s) PLAUH2115
PRODUCT SPECIFICATIONS
Elkay Pursuit Stainless Steel 23-1/2" x 18-1/4" x 7-1/2", Single Bowl
Undermount Laundry Sink. Sink is manufactured from 18 gauge 316L
Stainless Steel with a Lustrous Satin finish, Rear Center drain
placement, and Sides and Bottom pads.
Installation Type:
Undermount
Material:
316L Stainless Steel
Special Features:
316 Stainless
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
1
Sink Dimensions:
23-1/2" x 18-1/4" x 7-1/2"
Bowl 1 Dimensions:
21" x 15-3/4" x 7-1/2"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
Yes
Cutout Template #:
1000001400
Template is available for download at elkay.com. CAD software will be
required to open the template.
Custom Options
□ Type 316 Stainless Steel
Drain Location
□ Right Rear
□ Left Rear
□ Center
□ Center Rear
Overflow Location
□ Front
□ Rear
Alternate Punching
□ Faucet Model:
□ Punch Required:
Sink Size
□ Bowl Depth:
□ Drainboard Width:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Buy American Act
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 01272022 1333 Butterfield Road, Suite 200 © 2022 Page 1
PLAUH2115 Downers Grove, IL 60515 PLAUH2115_spec.pdf
Page 2
SPECIFICATIONS
Elkay Pursuit Stainless Steel 23-1/2" x 18-1/4" x 7-1/2"
Single Bowl Undermount Laundry Sink
Model(s) PLAUH2115
Installation Profile:
Optional Accessories
LKWOBG2115SS
Elkay Stainless Steel 20" x 14-3/4" x 1" Bottom Grid
Spec Sheet (PDF)
CB1516
Elkay Hardwood 15" x 16-3/4" x 3/4" Cutting Board
Spec Sheet (PDF)
LK335
Elkay 3-1/2" Drain Fitting Type 316 Stainless Steel Body Strainer Basket with rubber seal and
Tailpiece
Spec Sheet (PDF)
LK372
Elkay 3-1/2" Drain Type 316 Stainless Steel Body Strainer and Tailpiece
Spec Sheet (PDF)
