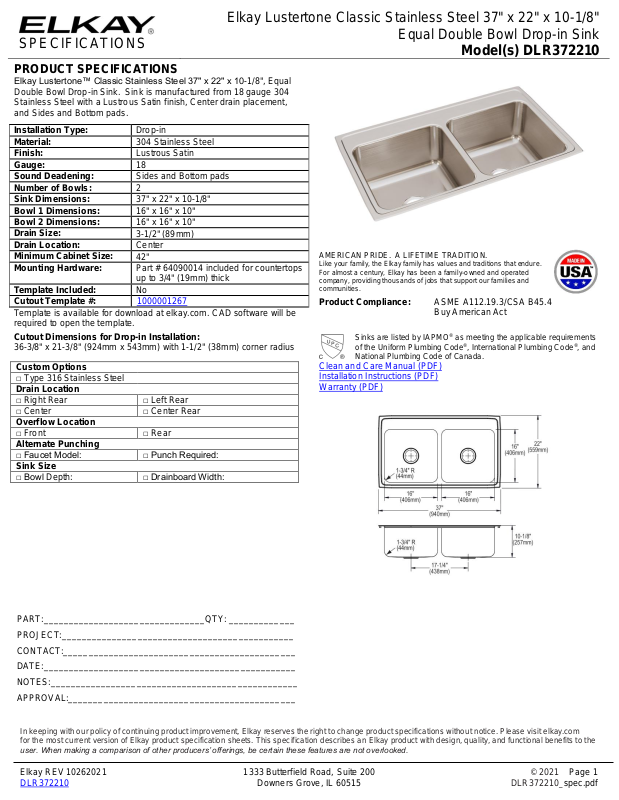

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 37" x 22" x 10-1/8"
Equal Double Bowl Drop-in Sink
Model(s) DLR372210
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 37" x 22" x 10-1/8", Equal
Double Bowl Drop-in Sink. Sink is manufactured from 18 gauge 304
Stainless Steel with a Lustrous Satin finish, Center drain placement,
and Sides and Bottom pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
37" x 22" x 10-1/8"
Bowl 1 Dimensions:
16" x 16" x 10"
Bowl 2 Dimensions:
16" x 16" x 10"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
42"
Mounting Hardware:
Part # 64090014 included for countertops
up to 3/4" (19mm) thick
Template Included:
No
Cutout Template #:
1000001267
Template is available for download at elkay.com. CAD software will be
required to open the template.
Cutout Dimensions for Drop-in Installation:
36-3/8" x 21-3/8" (924mm x 543mm) with 1-1/2" (38mm) corner radius
Custom Options
□ Type 316 Stainless Steel
Drain Location
□ Right Rear
□ Left Rear
□ Center
□ Center Rear
Overflow Location
□ Front
□ Rear
Alternate Punching
□ Faucet Model:
□ Punch Required:
Sink Size
□ Bowl Depth:
□ Drainboard Width:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Buy American Act
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10262021 1333 Butterfield Road, Suite 200 © 2021 Page 1
DLR372210 Downers Grove, IL 60515 DLR372210_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 37" x 22" x 10-1/8"
Equal Double Bowl Drop-in Sink
Model(s) DLR372210
Hole Drilling Configurations:
Installation Profile:
Optional Accessories
CB1713
Elkay Hardwood 13-1/2" x 17" x 1" Cutting Board
Spec Sheet (PDF)
CBS1316
Elkay Hardwood 14-1/2" x 17" x 3/4" Cutting Board
Spec Sheet (PDF)
LK99
Elkay Deluxe 3-1/2" Drain Type 304 Stainless Steel Body Strainer Basket Rubber
Seal and Tailpiece
Spec Sheet (PDF)
LKWRB1316SS
Elkay Stainless Steel 12-1/2" x 15" x 7" Rinsing Basket
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10262021 1333 Butterfield Road, Suite 200 © 2021 Page 2
DLR372210 Downers Grove, IL 60515 DLR372210_spec.pdf
