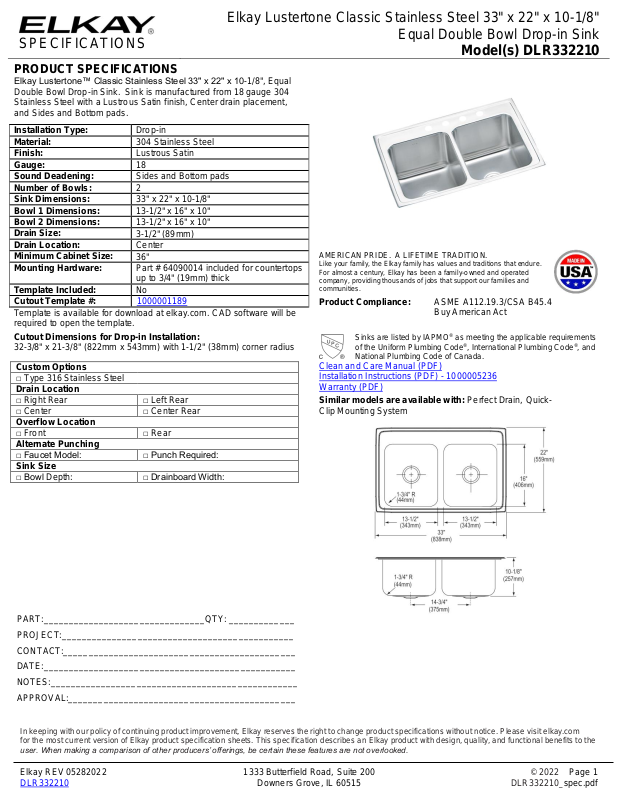

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 33" x 22" x 10-1/8"
Equal Double Bowl Drop-in Sink
Model(s) DLR332210
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 33" x 22" x 10-1/8", Equal
Double Bowl Drop-in Sink. Sink is manufactured from 18 gauge 304
Stainless Steel with a Lustrous Satin finish, Center drain placement,
and Sides and Bottom pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
2
Sink Dimensions:
33" x 22" x 10-1/8"
Bowl 1 Dimensions:
13-1/2" x 16" x 10"
Bowl 2 Dimensions:
13-1/2" x 16" x 10"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090014 included for countertops
up to 3/4" (19mm) thick
Template Included:
No
Cutout Template #:
1000001189
Template is available for download at elkay.com. CAD software will be
required to open the template.
Cutout Dimensions for Drop-in Installation:
32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius
Custom Options
□ Type 316 Stainless Steel
Drain Location
□ Right Rear
□ Left Rear
□ Center
□ Center Rear
Overflow Location
□ Front
□ Rear
Alternate Punching
□ Faucet Model:
□ Punch Required:
Sink Size
□ Bowl Depth:
□ Drainboard Width:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Buy American Act
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000005236
Warranty (PDF)
Similar models are available with: Perfect Drain, QuickClip Mounting System
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05282022 1333 Butterfield Road, Suite 200 © 2022 Page 1
DLR332210 Downers Grove, IL 60515 DLR332210_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 33" x 22" x 10-1/8"
Equal Double Bowl Drop-in Sink
Model(s) DLR332210
Hole Drilling Configurations:
Installation Profile:
Optional Accessories
LKWBG1316SS
Elkay Stainless Steel 12-1/2" x 15" x 1" Bottom Grid
Spec Sheet (PDF)
CB1613
Elkay Hardwood 16-3/4" x 13-1/2" x 1" Cutting Board
Spec Sheet (PDF)
CB1713
Elkay Hardwood 13-1/2" x 17" x 1" Cutting Board
Spec Sheet (PDF)
CBS1316
Elkay Hardwood 14-1/2" x 17" x 3/4" Cutting Board
Spec Sheet (PDF)
LK99
Elkay Deluxe 3-1/2" Drain Type 304 Stainless Steel Body Strainer Basket Rubber Seal and
Tailpiece
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05282022 1333 Butterfield Road, Suite 200 © 2022 Page 2
DLR332210 Downers Grove, IL 60515 DLR332210_spec.pdf
Page 3
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 33" x 22" x 10-1/8"
Equal Double Bowl Drop-in Sink
Model(s) DLR332210
LKGT1041CR
Elkay Gourmet Single Hole Kitchen Faucet Pull-out Spray and Lever Handle with Hi and Midrise Base Options Chrome
Spec_Sheet (PDF)
LKGT1041NK
Elkay Gourmet Single Hole Kitchen Faucet Pull-out Spray and Lever Handle with Hi and Midrise Base Options Brushed Nickel
Spec_Sheet (PDF)
LKGT1041RB
Elkay Gourmet Single Hole Kitchen Faucet Pull-out Spray and Lever Handle with Hi and Midrise Base Options Oil Rubbed Bronze
Spec_Sheet (PDF)
LKWRB1316SS
Elkay Stainless Steel 12-1/2" x 15" x 7" Rinsing Basket
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05282022 1333 Butterfield Road, Suite 200 © 2022 Page 3
DLR332210 Downers Grove, IL 60515 DLR332210_spec.pdf
