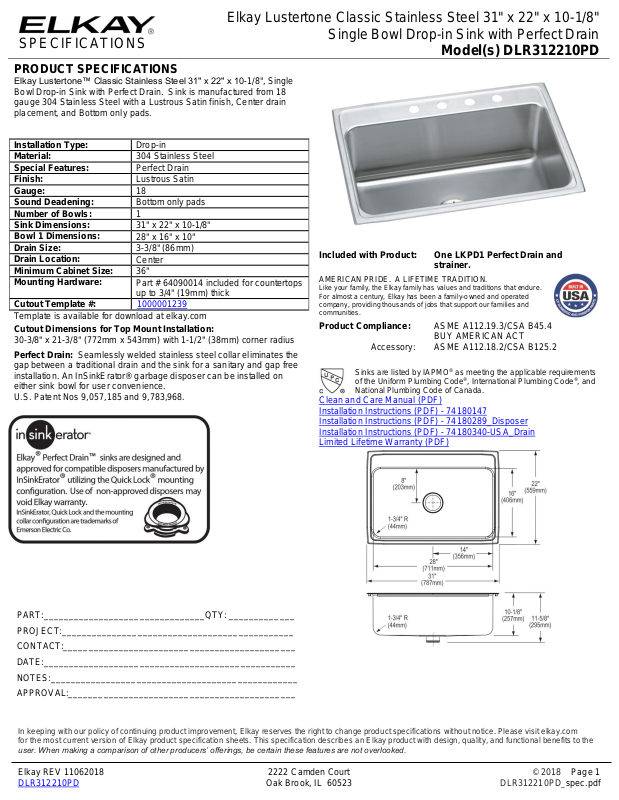

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 31" x 22" x 10-1/8"
Single Bowl Drop-in Sink with Perfect Drain
Model(s) DLR312210PD
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 31" x 22" x 10-1/8", Single
Bowl Drop-in Sink with Perfect Drain. Sink is manufactured from 18
gauge 304 Stainless Steel with a Lustrous Satin finish, Center drain
placement, and Bottom only pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Special Features:
Perfect Drain
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
31" x 22" x 10-1/8"
Bowl 1 Dimensions:
28" x 16" x 10"
Drain Size:
3-3/8" (86mm)
Drain Location:
Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090014 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001239
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
30-3/8" x 21-3/8" (772mm x 543mm) with 1-1/2" (38mm) corner radius
Perfect Drain: Seamlessly welded stainless steel collar eliminates the
gap between a traditional drain and the sink for a sanitary and gap free
installation. An InSinkErator® garbage disposer can be installed on
either sink bowl for user convenience.
U.S. Patent Nos 9,057,185 and 9,783,968.
Included with Product:
One LKPD1 Perfect Drain and
strainer.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 74180147
Installation Instructions (PDF) - 74180289_Disposer
Installation Instructions (PDF) - 74180340-USA_Drain
Limited Lifetime Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 1
DLR312210PD Oak Brook, IL 60523 DLR312210PD_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 31" x 22" x 10-1/8"
Single Bowl Drop-in Sink with Perfect Drain
Model(s) DLR312210PD
Hole Drilling Configurations:
Installation Profile:
OPTIONAL ACCESSORIES
Bottom Grid:
LKWBG2816SS
Cutting Board:
CB1713, CBS1316
Drain:
LKPDVR18B, LKDS99, LKDS35
Faucet:
LKGT1041, LKGT2041
Hardware:
LK364, LK463
Soap Dispenser:
LKGT1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 2
DLR312210PD Oak Brook, IL 60523 DLR312210PD_spec.pdf
