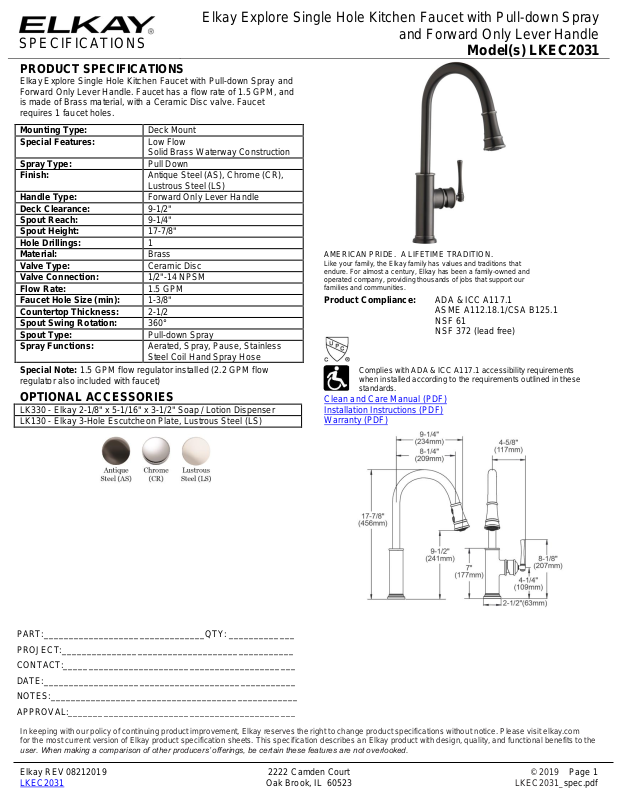

Page 1
SPECIFICATIONS
Elkay Explore Single Hole Kitchen Faucet with Pull-down Spray
and Forward Only Lever Handle
Model(s) LKEC2031
PRODUCT SPECIFICATIONS
Elkay Explore Single Hole Kitchen Faucet with Pull-down Spray and
Forward Only Lever Handle. Faucet has a flow rate of 1.5 GPM, and
is made of Brass material, with a Ceramic Disc valve. Faucet
requires 1 faucet holes.
Mounting Type:
Deck Mount
Special Features:
Low Flow
Solid Brass Waterway Construction
Spray Type:
Pull Down
Finish:
Antique Steel (AS), Chrome (CR),
Lustrous Steel (LS)
Handle Type:
Forward Only Lever Handle
Deck Clearance:
9-1/2"
Spout Reach:
9-1/4"
Spout Height:
17-7/8"
Hole Drillings:
1
Material:
Brass
Valve Type:
Ceramic Disc
Valve Connection:
1/2"-14 NPSM
Flow Rate:
1.5 GPM
Faucet Hole Size (min):
1-3/8"
Countertop Thickness:
2-1/2
Spout Swing Rotation:
360°
Spout Type:
Pull-down Spray
Spray Functions:
Aerated, Spray, Pause, Stainless
Steel Coil Hand Spray Hose
Special Note: 1.5 GPM flow regulator installed (2.2 GPM flow
regulator also included with faucet)
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372 (lead free)
Complies with ADA & ICC A117.1 accessibility requirements
when installed according to the requirements outlined in these
standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
OPTIONAL ACCESSORIES
LK330 - Elkay 2-1/8" x 5-1/16" x 3-1/2" Soap / Lotion Dispenser
LK130 - Elkay 3-Hole Escutcheon Plate, Lustrous Steel (LS)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08212019 2222 Camden Court © 2019 Page 1
LKEC2031 Oak Brook, IL 60523 LKEC2031_spec.pdf
Page 2
SPECIFICATIONS
Elkay Explore Single Hole Kitchen Faucet with Pull-down Spray
and Forward Only Lever Handle
Model(s) LKEC2031
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08212019 2222 Camden Court © 2019 Page 2
LKEC2031 Oak Brook, IL 60523 LKEC2031_spec.pdf
