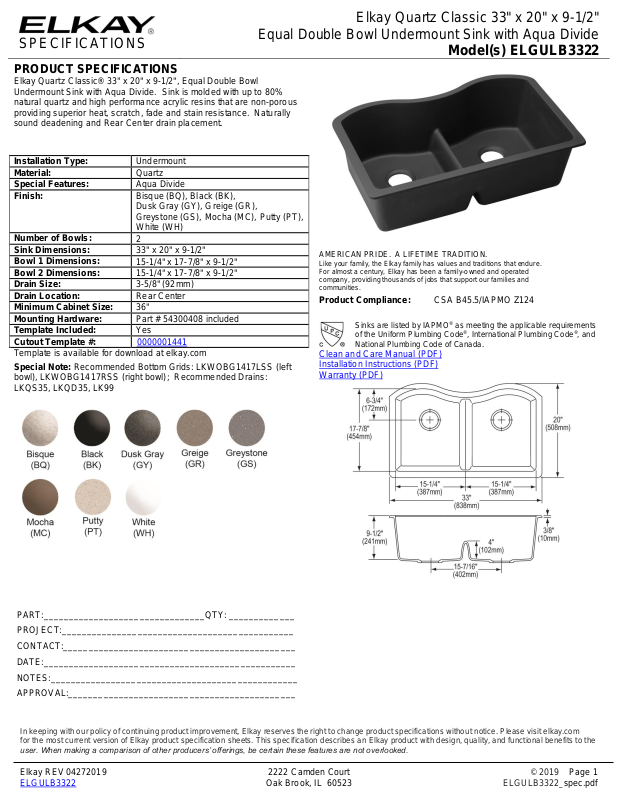

SPECIFICATIONS
Elkay Quartz Classic 33" x 20" x 9-1/2"
Equal Double Bowl Undermount Sink with Aqua Divide
Model(s) ELGULB3322
PRODUCT SPECIFICATIONS
Elkay Quartz Classic® 33" x 20" x 9-1/2", Equal Double Bowl
Undermount Sink with Aqua Divide. Sink is molded with up to 80%
natural quartz and high performance acrylic resins that are non-porous
providing superior heat, scratch, fade and stain resistance. Naturally
sound deadening and Rear Center drain placement.
Installation Type:
Undermount
Material:
Quartz
Special Features:
Aqua Divide
Finish:
Bisque (BQ), Black (BK),
Dusk Gray (GY), Greige (GR),
Greystone (GS), Mocha (MC), Putty (PT),
White (WH)
Number of Bowls:
2
Sink Dimensions:
33" x 20" x 9-1/2"
Bowl 1 Dimensions:
15-1/4" x 17-7/8" x 9-1/2"
Bowl 2 Dimensions:
15-1/4" x 17-7/8" x 9-1/2"
Drain Size:
3-5/8" (92mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300408 included
Template Included:
Yes
Cutout Template #:
0000001441
Template is available for download at elkay.com
Special Note: Recommended Bottom Grids: LKWOBG1417LSS (left
bowl), LKWOBG1417RSS (right bowl); Recommended Drains:
LKQS35, LKQD35, LK99
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
CSA B45.5/IAPMO Z124
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04272019 2222 Camden Court © 2019 Page 1
ELGULB3322 Oak Brook, IL 60523 ELGULB3322_spec.pdf
Page 2
SPECIFICATIONS
Elkay Quartz Classic 33" x 20" x 9-1/2"
Equal Double Bowl Undermount Sink with Aqua Divide
Model(s) ELGULB3322
Installation Profile:
OPTIONAL ACCESSORIES
Bottom Grid:
LKOBG1417LSS (left bowl),
LKOBG1417RSS (right bowl)
Cutting Board:
LKCB1417HW
Drain:
LKQS35, LKQD35, LK99
Faucet:
LK6000CR, LKEC2031
Soap Dispenser:
LKGT1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04272019 2222 Camden Court © 2019 Page 2
ELGULB3322 Oak Brook, IL 60523 ELGULB3322_spec.pdf
