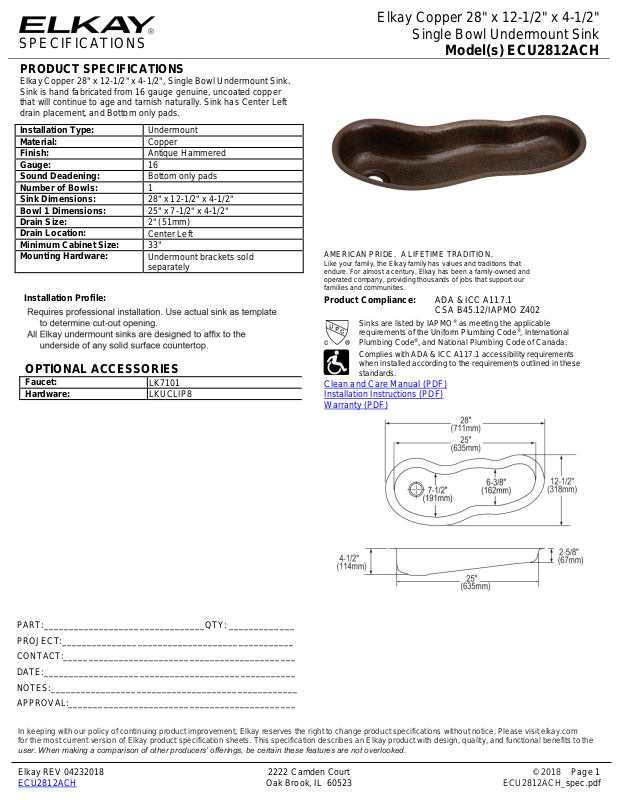

SPECIFICATIONS
Elkay Copper 28" x 12-1/2" x 4-1/2"
Single Bowl Undermount Sink
Model(s) ECU2812ACH
PRODUCT SPECIFICATIONS
Elkay Copper 28" x 12-1/2" x 4-1/2", Single Bowl Undermount Sink.
Sink is hand fabricated from 16 gauge genuine, uncoated copper
that will continue to age and tarnish naturally. Sink has Center Left
drain placement, and Bottom only pads.
Installation Type:
Undermount
Material:
Copper
Finish:
Antique Hammered
Gauge:
16
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
28" x 12-1/2" x 4-1/2"
Bowl 1 Dimensions:
25" x 7-1/2" x 4-1/2"
Drain Size:
2" (51mm)
Drain Location:
Center Left
Minimum Cabinet Size:
33"
Mounting Hardware:
Undermount brackets sold
separately
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ADA & ICC A117.1
CSA B45.12/IAPMO Z402
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements
when installed according to the requirements outlined in these
standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
OPTIONAL ACCESSORIES
Faucet:
LK7101
Hardware:
LKUCLIP8
Installation Profile:
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04232018 2222 Camden Court © 2018 Page 1
ECU2812ACH Oak Brook, IL 60523 ECU2812ACH_spec.pdf
