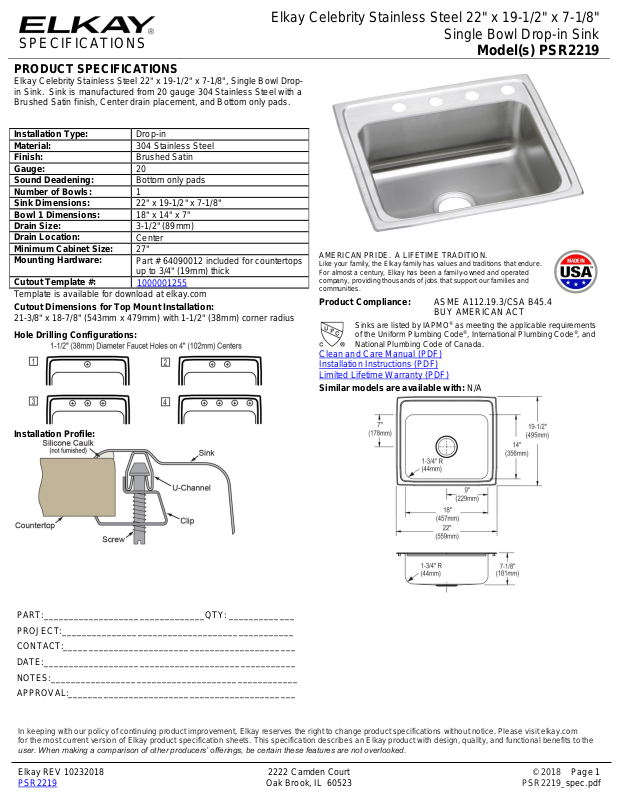

Page 1
SPECIFICATIONS
Elkay Celebrity Stainless Steel 22" x 19-1/2" x 7-1/8"
Single Bowl Drop-in Sink
Model(s) PSR2219
PRODUCT SPECIFICATIONS
Elkay Celebrity Stainless Steel 22" x 19-1/2" x 7-1/8", Single Bowl Dropin Sink. Sink is manufactured from 20 gauge 304 Stainless Steel with a
Brushed Satin finish, Center drain placement, and Bottom only pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Finish:
Brushed Satin
Gauge:
20
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
22" x 19-1/2" x 7-1/8"
Bowl 1 Dimensions:
18" x 14" x 7"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Part # 64090012 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001255
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
21-3/8" x 18-7/8" (543mm x 479mm) with 1-1/2" (38mm) corner radius
Hole Drilling Configurations:
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: N/A
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10232018 2222 Camden Court © 2018 Page 1
PSR2219 Oak Brook, IL 60523 PSR2219_spec.pdf
Page 2
SPECIFICATIONS
Elkay Celebrity Stainless Steel 22" x 19-1/2" x 7-1/8"
Single Bowl Drop-in Sink
Model(s) PSR2219
OPTIONAL ACCESSORIES
Cutting Board:
CBS1418
Drain:
LK99
Faucet:
LKGT1041, LKGT2041
Hardware:
LK364, LK463
Rinsing Basket:
LKWRB1418SS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10232018 2222 Camden Court © 2018 Page 2
PSR2219 Oak Brook, IL 60523 PSR2219_spec.pdf
