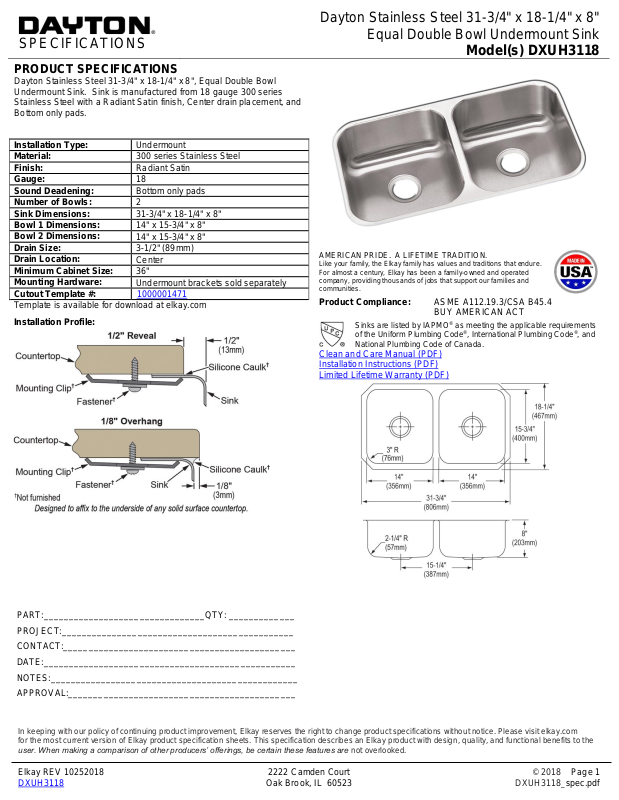

Page 1
SPECIFICATIONS
Dayton Stainless Steel 31-3/4" x 18-1/4" x 8"
Equal Double Bowl Undermount Sink
Model(s) DXUH3118
PRODUCT SPECIFICATIONS
Dayton Stainless Steel 31-3/4" x 18-1/4" x 8", Equal Double Bowl
Undermount Sink. Sink is manufactured from 18 gauge 300 series
Stainless Steel with a Radiant Satin finish, Center drain placement, and
Bottom only pads.
Installation Type:
Undermount
Material:
300 series Stainless Steel
Finish:
Radiant Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
2
Sink Dimensions:
31-3/4" x 18-1/4" x 8"
Bowl 1 Dimensions:
14" x 15-3/4" x 8"
Bowl 2 Dimensions:
14" x 15-3/4" x 8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Undermount brackets sold separately
Cutout Template #:
1000001471
Template is available for download at elkay.com
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10252018 2222 Camden Court © 2018 Page 1
DXUH3118 Oak Brook, IL 60523 DXUH3118_spec.pdf
Page 2
SPECIFICATIONS
Dayton Stainless Steel 31-3/4" x 18-1/4" x 8"
Equal Double Bowl Undermount Sink
Model(s) DXUH3118
OPTIONAL ACCESSORIES
Bottom Grid:
GBG1415SS
Cutting Board:
CB1516*
Drain:
D1125
Hardware:
LKUCLIP8 (2 Required)
Rinsing Basket:
LKWRB1316SS
Sinkmate:
LKSMHSL
* 1/2" sink reveal required for proper fit.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10252018 2222 Camden Court © 2018 Page 2
DXUH3118 Oak Brook, IL 60523 DXUH3118_spec.pdf
