SPECIFICATIONS

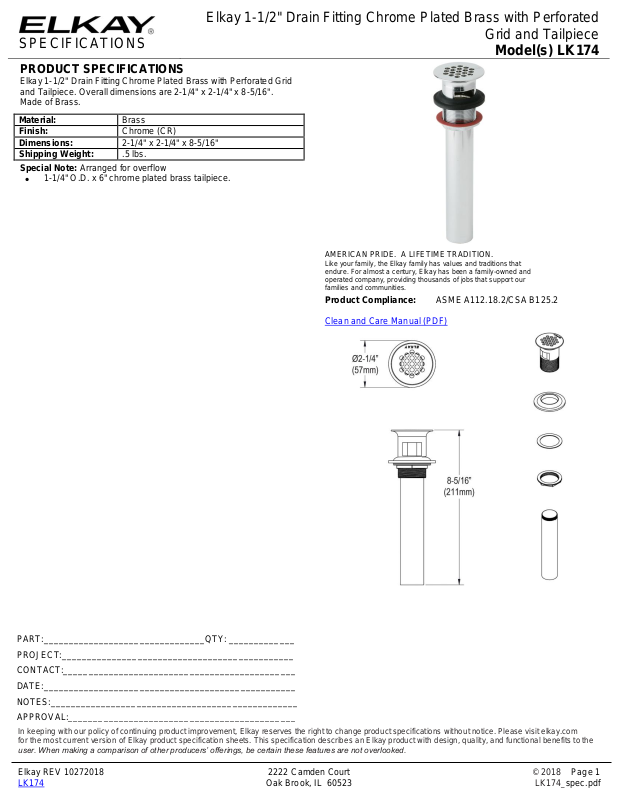

Elkay 1-1/2" Drain Fitting Chrome Plated Brass with Perforated
Grid and Tailpiece
Model(s) LK174
PRODUCT SPECIFICATIONS
Elkay 1-1/2" Drain Fitting Chrome Plated Brass with Perforated Grid
and Tailpiece. Overall dimensions are 2-1/4" x 2-1/4" x 8-5/16".
Made of Brass.
Material:
Brass
Finish:
Chrome (CR)
Dimensions:
2-1/4" x 2-1/4" x 8-5/16"
Shipping Weight:
.5 lbs.
Special Note: Arranged for overflow
1-1/4" O.D. x 6" chrome plated brass tailpiece.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10272018 2222 Camden Court © 2018 Page 1
LK174 Oak Brook, IL 60523 LK174_spec.pdf
