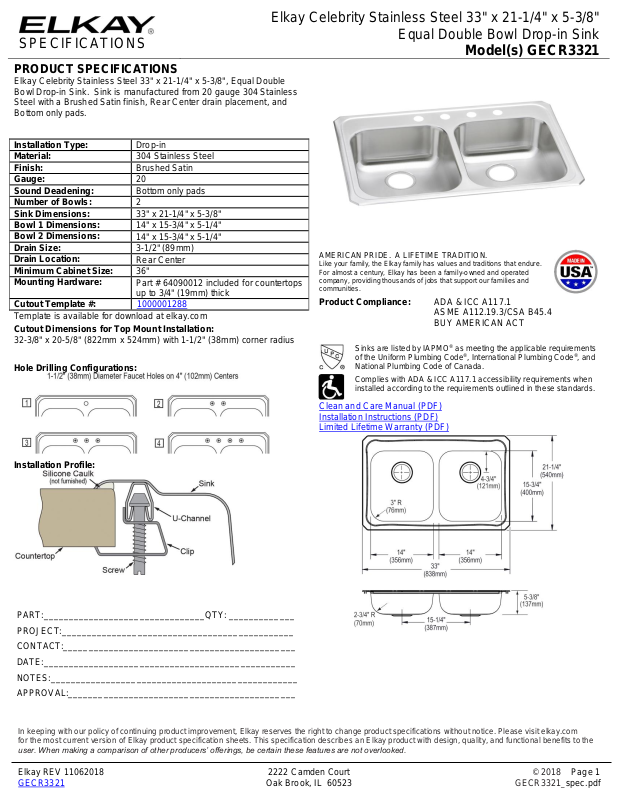

Page 1
SPECIFICATIONS
Elkay Celebrity Stainless Steel 33" x 21-1/4" x 5-3/8"
Equal Double Bowl Drop-in Sink
Model(s) GECR3321
PRODUCT SPECIFICATIONS
Elkay Celebrity Stainless Steel 33" x 21-1/4" x 5-3/8", Equal Double
Bowl Drop-in Sink. Sink is manufactured from 20 gauge 304 Stainless
Steel with a Brushed Satin finish, Rear Center drain placement, and
Bottom only pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Finish:
Brushed Satin
Gauge:
20
Sound Deadening:
Bottom only pads
Number of Bowls:
2
Sink Dimensions:
33" x 21-1/4" x 5-3/8"
Bowl 1 Dimensions:
14" x 15-3/4" x 5-1/4"
Bowl 2 Dimensions:
14" x 15-3/4" x 5-1/4"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090012 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001288
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
32-3/8" x 20-5/8" (822mm x 524mm) with 1-1/2" (38mm) corner radius
Hole Drilling Configurations:
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 1
GECR3321 Oak Brook, IL 60523 GECR3321_spec.pdf
Page 2
SPECIFICATIONS
Elkay Celebrity Stainless Steel 33" x 21-1/4" x 5-3/8"
Equal Double Bowl Drop-in Sink
Model(s) GECR3321
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG1415SS
Cutting Board:
CB1516
Drain:
LK99
Faucet:
LKGT1041, LKGT2041
Hardware:
LK364, LK463
Rinsing Basket:
LKWRB1316SS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
