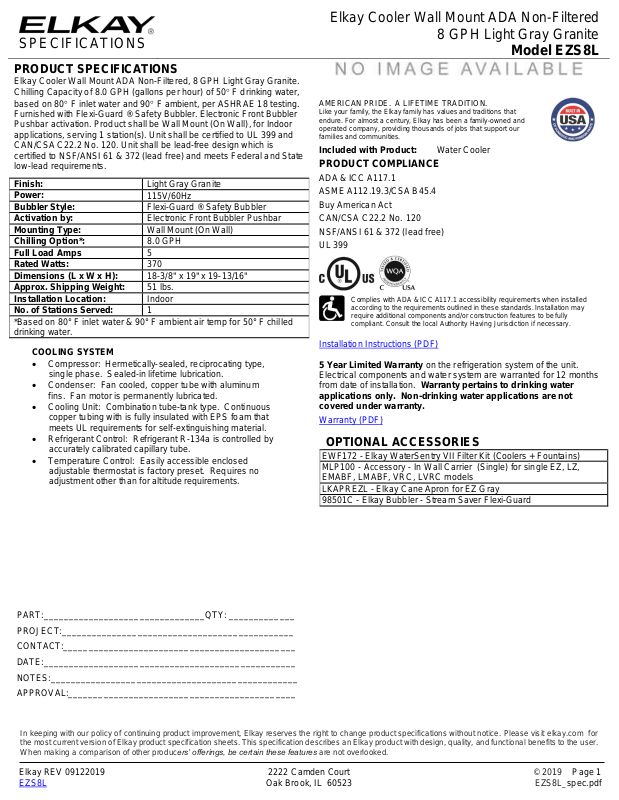

SPECIFICATIONS
Elkay Cooler Wall Mount ADA Non-Filtered
8 GPH Light Gray Granite
Model EZS8L
PRODUCT SPECIFICATIONS
Elkay Cooler Wall Mount ADA Non-Filtered, 8 GPH Light Gray Granite.
Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water,
based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing.
Furnished with Flexi-Guard ® Safety Bubbler. Electronic Front Bubbler
Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor
applications, serving 1 station(s). Unit shall be certified to UL 399 and
CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is
certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State
low-lead requirements.
Finish:
Light Gray Granite
Power:
115V/60Hz
Bubbler Style:
Flexi-Guard ® Safety Bubbler
Activation by:
Electronic Front Bubbler Pushbar
Mounting Type:
Wall Mount (On Wall)
Chilling Option*:
8.0 GPH
Full Load Amps
5
Rated Watts:
370
Dimensions (L x W x H):
18-3/8" x 19" x 19-13/16"
Approx. Shipping Weight:
51 lbs.
Installation Location:
Indoor
No. of Stations Served:
1
*Based on 80° F inlet water & 90° F ambient air temp for 50° F chilled
drinking water.
COOLING SYSTEM
Compressor: Hermetically-sealed, reciprocating type,
single phase. Sealed-in lifetime lubrication.
Condenser: Fan cooled, copper tube with aluminum
fins. Fan motor is permanently lubricated.
Cooling Unit: Combination tube-tank type. Continuous
copper tubing with is fully insulated with EPS foam that
meets UL requirements for self-extinguishing material.
Refrigerant Control: Refrigerant R-134a is controlled by
accurately calibrated capillary tube.
Temperature Control: Easily accessible enclosed
adjustable thermostat is factory preset. Requires no
adjustment other than for altitude requirements.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Included with Product:
Water Cooler
PRODUCT COMPLIANCE
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Buy American Act
CAN/CSA C22.2 No. 120
NSF/ANSI 61 & 372 (lead free)
UL 399
Complies with ADA & ICC A117.1 accessibility requirements when installed
according to the requirements outlined in these standards. Installation may
require additional components and/or construction features to be fully
compliant. Consult the local Authority Having Jurisdiction if necessary.
Installation Instructions (PDF)
5 Year Limited Warranty on the refrigeration system of the unit.
Electrical components and water system are warranted for 12 months
from date of installation. Warranty pertains to drinking water
applications only. Non-drinking water applications are not
covered under warranty.
Warranty (PDF)
OPTIONAL ACCESSORIES
EWF172 - Elkay WaterSentry VII Filter Kit (Coolers + Fountains)
MLP100 - Accessory - In Wall Carrier (Single) for single EZ, LZ,
EMABF, LMABF, VRC, LVRC models
LKAPREZL - Elkay Cane Apron for EZ Gray
98501C - Elkay Bubbler - Stream Saver Flexi-Guard
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com for
the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the user.
When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 09122019 2222 Camden Court © 2019 Page 1
EZS8L Oak Brook, IL 60523 EZS8L_spec.pdf
