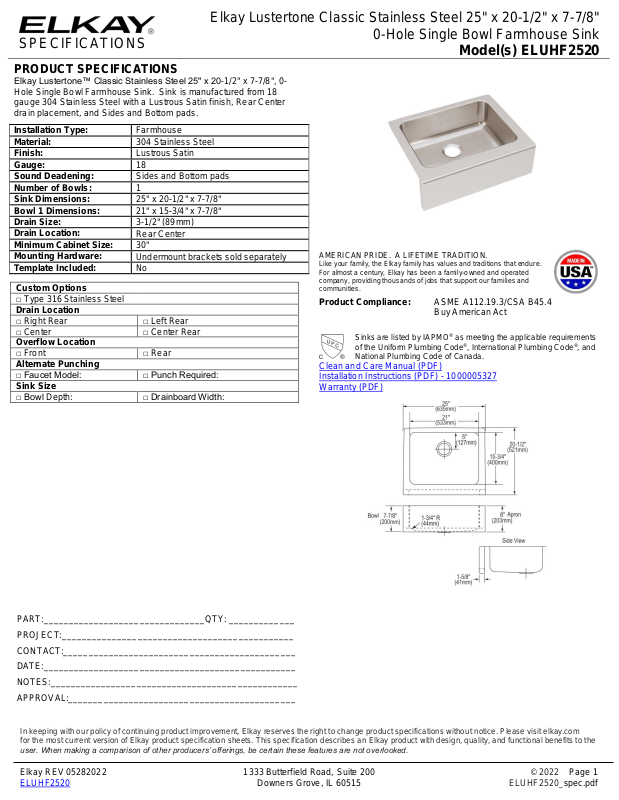

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 25" x 20-1/2" x 7-7/8"
0-Hole Single Bowl Farmhouse Sink
Model(s) ELUHF2520
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 25" x 20-1/2" x 7-7/8", 0Hole Single Bowl Farmhouse Sink. Sink is manufactured from 18
gauge 304 Stainless Steel with a Lustrous Satin finish, Rear Center
drain placement, and Sides and Bottom pads.
Installation Type:
Farmhouse
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Sides and Bottom pads
Number of Bowls:
1
Sink Dimensions:
25" x 20-1/2" x 7-7/8"
Bowl 1 Dimensions:
21" x 15-3/4" x 7-7/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
30"
Mounting Hardware:
Undermount brackets sold separately
Template Included:
No
Custom Options
□ Type 316 Stainless Steel
Drain Location
□ Right Rear
□ Left Rear
□ Center
□ Center Rear
Overflow Location
□ Front
□ Rear
Alternate Punching
□ Faucet Model:
□ Punch Required:
Sink Size
□ Bowl Depth:
□ Drainboard Width:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Buy American Act
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF) - 1000005327
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05282022 1333 Butterfield Road, Suite 200 © 2022 Page 1
ELUHF2520 Downers Grove, IL 60515 ELUHF2520_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 25" x 20-1/2" x 7-7/8"
0-Hole Single Bowl Farmhouse Sink
Model(s) ELUHF2520
Installation Profile:
Optional Accessories
LKWOBG2115SS
Elkay Stainless Steel 20" x 14-3/4" x 1" Bottom Grid
Spec Sheet (PDF)
CB1516
Elkay Hardwood 15" x 16-3/4" x 3/4" Cutting Board
Spec Sheet (PDF)
LK99
Elkay Deluxe 3-1/2" Drain Type 304 Stainless Steel Body Strainer Basket Rubber Seal and
Tailpiece
Spec Sheet (PDF)
LKGT1041CR
Elkay Gourmet Single Hole Kitchen Faucet Pull-out Spray and Lever Handle with Hi and Midrise Base Options Chrome
Spec_Sheet (PDF)
LKGT1041NK
Elkay Gourmet Single Hole Kitchen Faucet Pull-out Spray and Lever Handle with Hi and Midrise Base Options Brushed Nickel
Spec_Sheet (PDF)
LKGT1041RB
Elkay Gourmet Single Hole Kitchen Faucet Pull-out Spray and Lever Handle with Hi and Midrise Base Options Oil Rubbed Bronze
Spec_Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 05282022 1333 Butterfield Road, Suite 200 © 2022 Page 2
ELUHF2520 Downers Grove, IL 60515 ELUHF2520_spec.pdf
