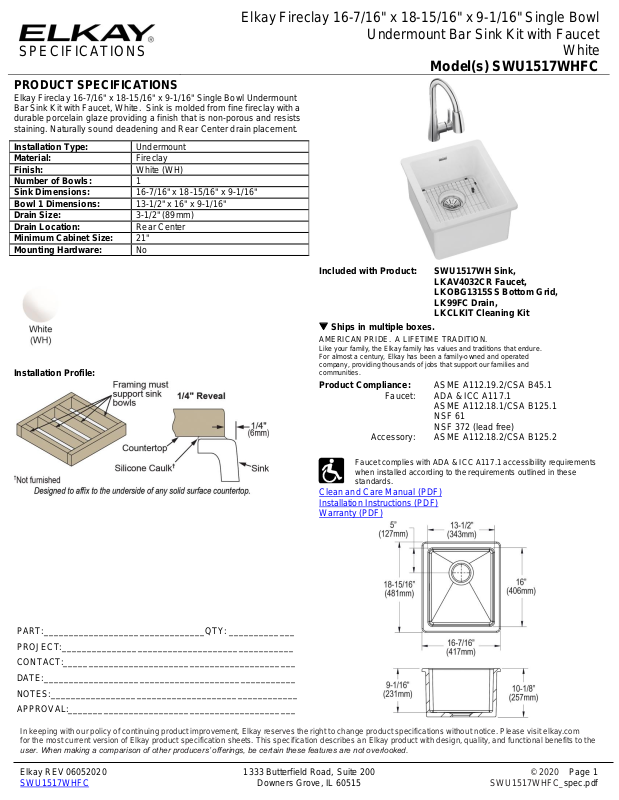

Page 1
SPECIFICATIONS
Elkay Fireclay 16-7/16" x 18-15/16" x 9-1/16" Single Bowl
Undermount Bar Sink Kit with Faucet
White
Model(s) SWU1517WHFC
PRODUCT SPECIFICATIONS
Elkay Fireclay 16-7/16" x 18-15/16" x 9-1/16" Single Bowl Undermount
Bar Sink Kit with Faucet, White. Sink is molded from fine fireclay with a
durable porcelain glaze providing a finish that is non-porous and resists
staining. Naturally sound deadening and Rear Center drain placement.
Installation Type:
Undermount
Material:
Fireclay
Finish:
White (WH)
Number of Bowls:
1
Sink Dimensions:
16-7/16" x 18-15/16" x 9-1/16"
Bowl 1 Dimensions:
13-1/2" x 16" x 9-1/16"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
21"
Mounting Hardware:
No
Installation Profile:
Included with Product:
SWU1517WH Sink,
LKAV4032CR Faucet,
LKOBG1315SS Bottom Grid,
LK99FC Drain,
LKCLKIT Cleaning Kit
Ships in multiple boxes.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.2/CSA B45.1
Faucet:
ADA & ICC A117.1
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372 (lead free)
Accessory:
ASME A112.18.2/CSA B125.2
Faucet complies with ADA & ICC A117.1 accessibility requirements
when installed according to the requirements outlined in these
standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
