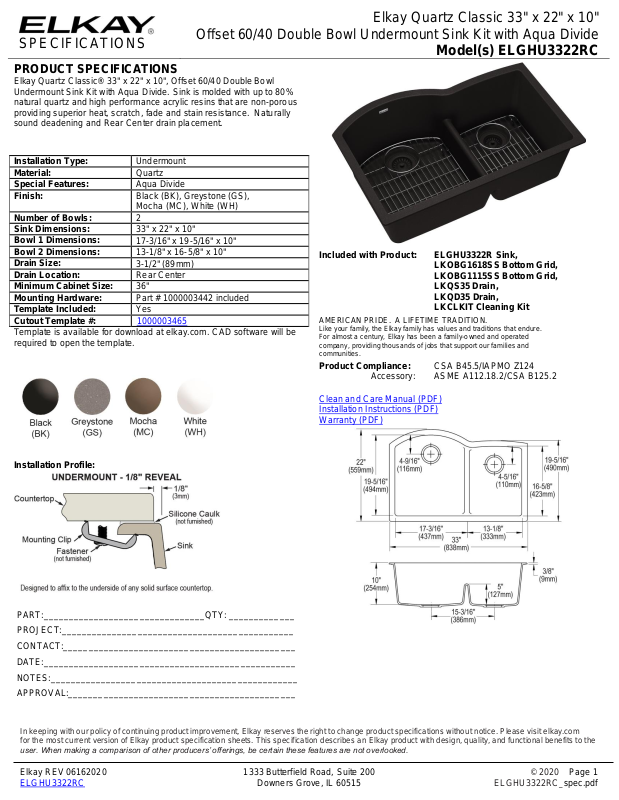

Page 1
SPECIFICATIONS
Elkay Quartz Classic 33" x 22" x 10"
Offset 60/40 Double Bowl Undermount Sink Kit with Aqua Divide
Model(s) ELGHU3322RC
PRODUCT SPECIFICATIONS
Elkay Quartz Classic® 33" x 22" x 10", Offset 60/40 Double Bowl
Undermount Sink Kit with Aqua Divide. Sink is molded with up to 80%
natural quartz and high performance acrylic resins that are non-porous
providing superior heat, scratch, fade and stain resistance. Naturally
sound deadening and Rear Center drain placement.
Installation Type:
Undermount
Material:
Quartz
Special Features:
Aqua Divide
Finish:
Black (BK), Greystone (GS),
Mocha (MC), White (WH)
Number of Bowls:
2
Sink Dimensions:
33" x 22" x 10"
Bowl 1 Dimensions:
17-3/16" x 19-5/16" x 10"
Bowl 2 Dimensions:
13-1/8" x 16-5/8" x 10"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 1000003442 included
Template Included:
Yes
Cutout Template #:
1000003465
Template is available for download at elkay.com. CAD software will be
required to open the template.
Installation Profile:
Included with Product:
ELGHU3322R Sink,
LKOBG1618SS Bottom Grid,
LKOBG1115SS Bottom Grid,
LKQS35 Drain,
LKQD35 Drain,
LKCLKIT Cleaning Kit
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
CSA B45.5/IAPMO Z124
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 06162020 1333 Butterfield Road, Suite 200 © 2020 Page 1
ELGHU3322RC Downers Grove, IL 60515 ELGHU3322RC_spec.pdf
Page 2
SPECIFICATIONS
Elkay Quartz Classic 33" x 22" x 10"
Offset 60/40 Double Bowl Undermount Sink Kit with Aqua Divide
Model(s) ELGHU3322RC
OPTIONAL ACCESSORIES
Soap Dispenser:
LKGT1054
