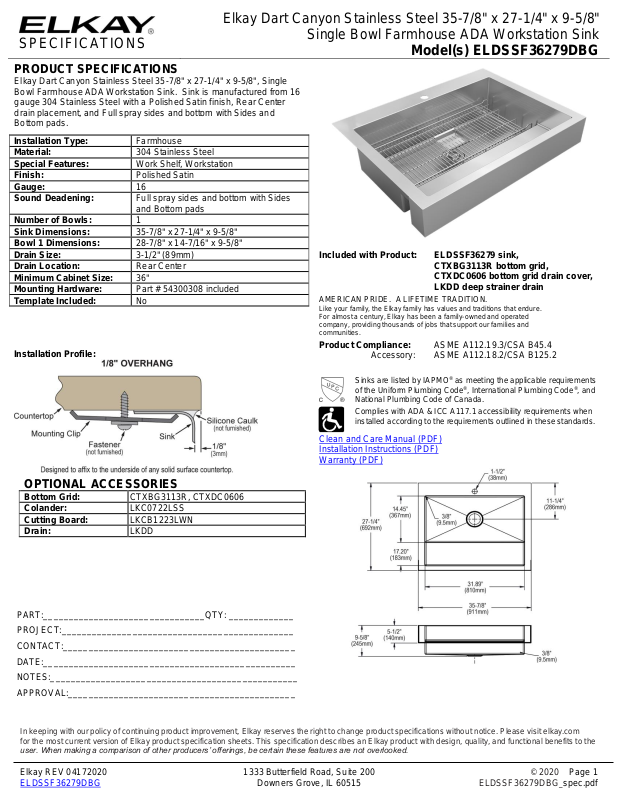

SPECIFICATIONS
Elkay Dart Canyon Stainless Steel 35-7/8" x 27-1/4" x 9-5/8"
Single Bowl Farmhouse ADA Workstation Sink
Model(s) ELDSSF36279DBG
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04172020 1333 Butterfield Road, Suite 200 © 2020 Page 1
ELDSSF36279DBG Downers Grove, IL 60515 ELDSSF36279DBG_spec.pdf
PRODUCT SPECIFICATIONS
Elkay Dart Canyon Stainless Steel 35-7/8" x 27-1/4" x 9-5/8", Single
Bowl Farmhouse ADA Workstation Sink. Sink is manufactured from 16
gauge 304 Stainless Steel with a Polished Satin finish, Rear Center
drain placement, and Full spray sides and bottom with Sides and
Bottom pads.
Installation Type:
Farmhouse
Material:
304 Stainless Steel
Special Features:
Work Shelf, Workstation
Finish:
Polished Satin
Gauge:
16
Sound Deadening:
Full spray sides and bottom with Sides
and Bottom pads
Number of Bowls:
1
Sink Dimensions:
35-7/8" x 27-1/4" x 9-5/8"
Bowl 1 Dimensions:
28-7/8" x 14-7/16" x 9-5/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300308 included
Template Included:
No
Installation Profile:
Included with Product:
ELDSSF36279 sink,
CTXBG3113R bottom grid,
CTXDC0606 bottom grid drain cover,
LKDD deep strainer drain
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
OPTIONAL ACCESSORIES
Bottom Grid:
CTXBG3113R, CTXDC0606
Colander:
LKC0722LSS
Cutting Board:
LKCB1223LWN
Drain:
LKDD
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
