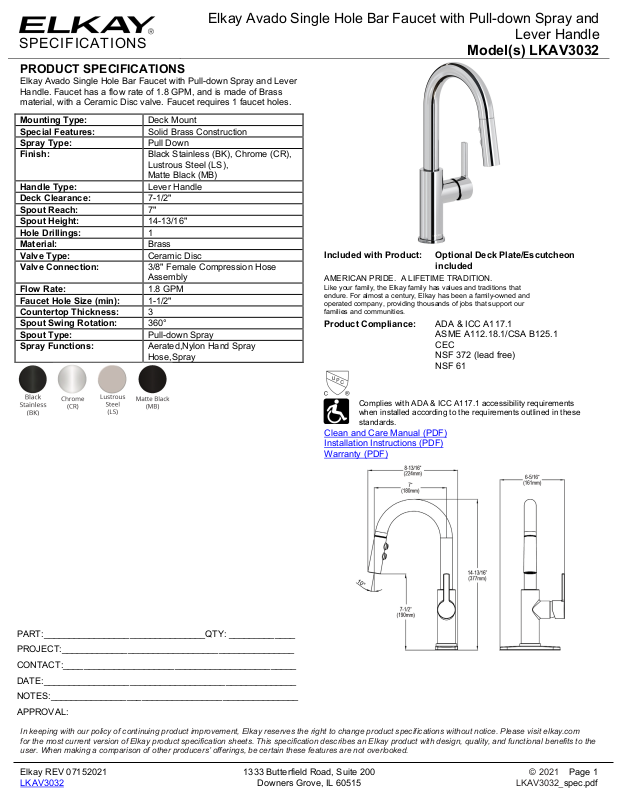

Page 1
Elkay Avado Single Hole Bar Faucet with Pull-down Spray and
Model(s) LKAV3032
PRODUCT SPECIFICATIONS
Elkay Avado Single Hole Bar Faucet with Pull-down Spray and Lever
Mounting Type:
Deck Mount
Special Features:
Solid Brass Construction
Spray Type:
Pull Down
Finish:
Black Stainless (BK), Chrome (CR),
Matte Black (MB)
Handle Type:
Lever Handle
Deck Clearance:
7-1/2"
Spout Reach:
7"
Spout Height:
14-13/16"
Hole Drillings:
1
Material:
Brass
Valve Type:
Ceramic Disc
Valve Connection:
3/8" Female Compression Hose
Assembly
Flow Rate:
1.8 GPM
Faucet Hole Size (min):
1-1/2"
Countertop Thickness:
3
Spout Swing Rotation:
360°
Spout Type:
Pull-down Spray
Spray Functions:
Aerated,Nylon Hand Spray
Hose,Spray
Included with Product:
Optional Deck Plate/Escutcheon
AMERICAN PRIDE. A LIFETIME TRADITION.
families and communities.
NSF 61
Complies with ADA &
when installed according to the requirements outlined in these
standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
APPROVAL:
SPECIFICATIONS
Handle. Faucet has a flow rate of 1.8 GPM, and is made of Brass
material, with a Ceramic Disc valve. Faucet requires 1 faucet holes.
Lustrous Steel (LS),
Lever Handle
included
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
Product Compliance: ADA & ICC A117.1
ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
ICC A117.1 accessibility requirements
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 07152021 1333 Butterfield Road, Suite 200 © 2021 Page 1
LKAV3032 Downers Grove, IL 60515 LKAV3032_spec.pdf
Page 2
SPECIFICATIONS
Elkay Avado Single Hole Bar Faucet with Pull-down Spray and
Model(s) LKAV3032
Optional Accessories
Lever Handle
LK135
LK321
Elkay 3-Hole Bar Faucet Deck Plate/Escutcheon
Spec Sheet (PDF)
Elkay 1-15/16" x 2-5/8" x 2-5/8" Soap / Lotion Dispenser
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 07152021 1333 Butterfield Road, Suite 200 © 2021 Page 2
LKAV3032 Downers Grove, IL 60515 LKAV3032_spec.pdf

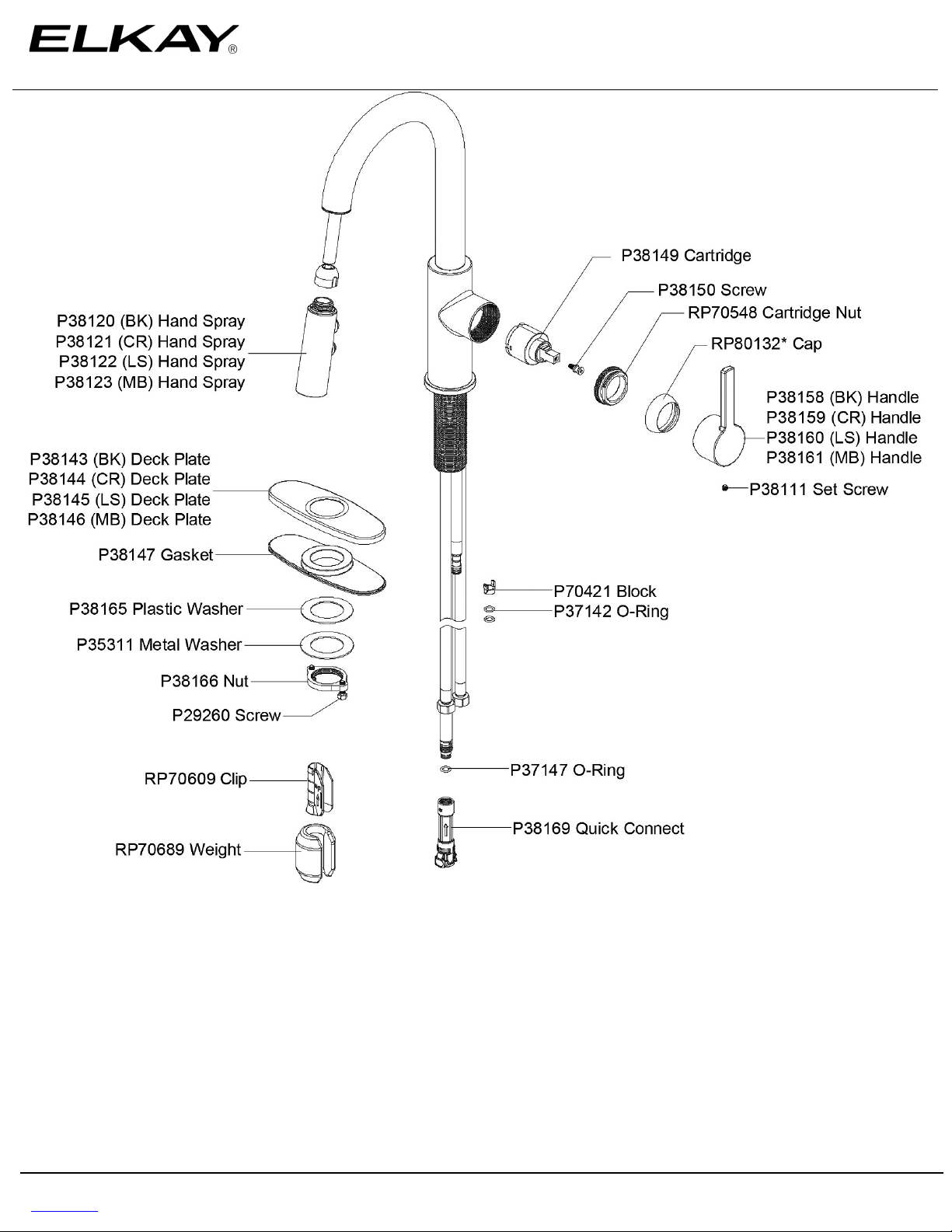

Page 3
SPECIFICATIONS
Elkay Avado Single Hole Bar Faucet with Pull-down Spray and
Model(s) LKAV3032
Lever Handle
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 07152021 1333 Butterfield Road, Suite 200 © 2021 Page 3
LKAV3032 Downers Grove, IL 60515 LKAV3032_spec.pdf
