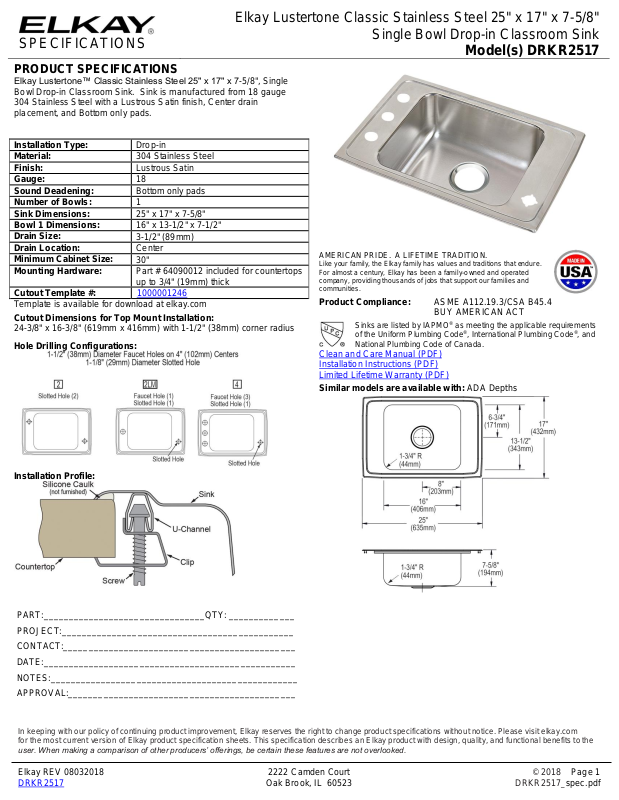

SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 25" x 17" x 7-5/8"
Single Bowl Drop-in Classroom Sink
Model(s) DRKR2517
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 25" x 17" x 7-5/8", Single
Bowl Drop-in Classroom Sink. Sink is manufactured from 18 gauge
304 Stainless Steel with a Lustrous Satin finish, Center drain
placement, and Bottom only pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
25" x 17" x 7-5/8"
Bowl 1 Dimensions:
16" x 13-1/2" x 7-1/2"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
30"
Mounting Hardware:
Part # 64090012 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001246
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
24-3/8" x 16-3/8" (619mm x 416mm) with 1-1/2" (38mm) corner radius
Hole Drilling Configurations:
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: ADA Depths
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 08032018 2222 Camden Court © 2018 Page 1
DRKR2517 Oak Brook, IL 60523 DRKR2517_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 25" x 17" x 7-5/8"
Single Bowl Drop-in Classroom Sink
Model(s) DRKR2517
OPTIONAL ACCESSORIES
Hardware:
LK364, LK463
Sinkmate:
LKSMHSL
