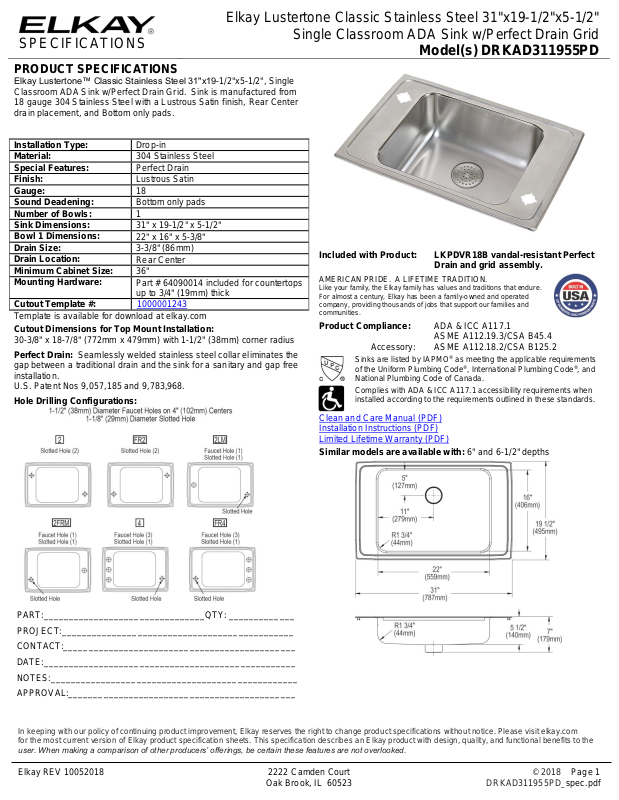

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 31"x19-1/2"x5-1/2"
Single Classroom ADA Sink w/Perfect Drain Grid
Model(s) DRKAD311955PD
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 31"x19-1/2"x5-1/2", Single
Classroom ADA Sink w/Perfect Drain Grid. Sink is manufactured from
18 gauge 304 Stainless Steel with a Lustrous Satin finish, Rear Center
drain placement, and Bottom only pads.
Installation Type:
Drop-in
Material:
304 Stainless Steel
Special Features:
Perfect Drain
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
31" x 19-1/2" x 5-1/2"
Bowl 1 Dimensions:
22" x 16" x 5-3/8"
Drain Size:
3-3/8" (86mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090014 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001243
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
30-3/8" x 18-7/8" (772mm x 479mm) with 1-1/2" (38mm) corner radius
Perfect Drain: Seamlessly welded stainless steel collar eliminates the
gap between a traditional drain and the sink for a sanitary and gap free
installation.
U.S. Patent Nos 9,057,185 and 9,783,968.
Hole Drilling Configurations:
Included with Product:
LKPDVR18B vandal-resistant Perfect
Drain and grid assembly.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Complies with ADA & ICC A117.1 accessibility requirements when
installed according to the requirements outlined in these standards.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: 6" and 6-1/2" depths
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10052018 2222 Camden Court © 2018 Page 1
Oak Brook, IL 60523 DRKAD311955PD_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 31"x19-1/2"x5-1/2"
Single Classroom ADA Sink w/Perfect Drain Grid
Model(s) DRKAD311955PD
Installation Profile:
OPTIONAL ACCESSORIES
Drain:
LKPDAD18B, LKPD1, LKDS35
Hardware:
LK364, LK463
Sinkmate:
LKSMHSL
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10052018 2222 Camden Court © 2018 Page 2
Oak Brook, IL 60523 DRKAD311955PD_spec.pdf
